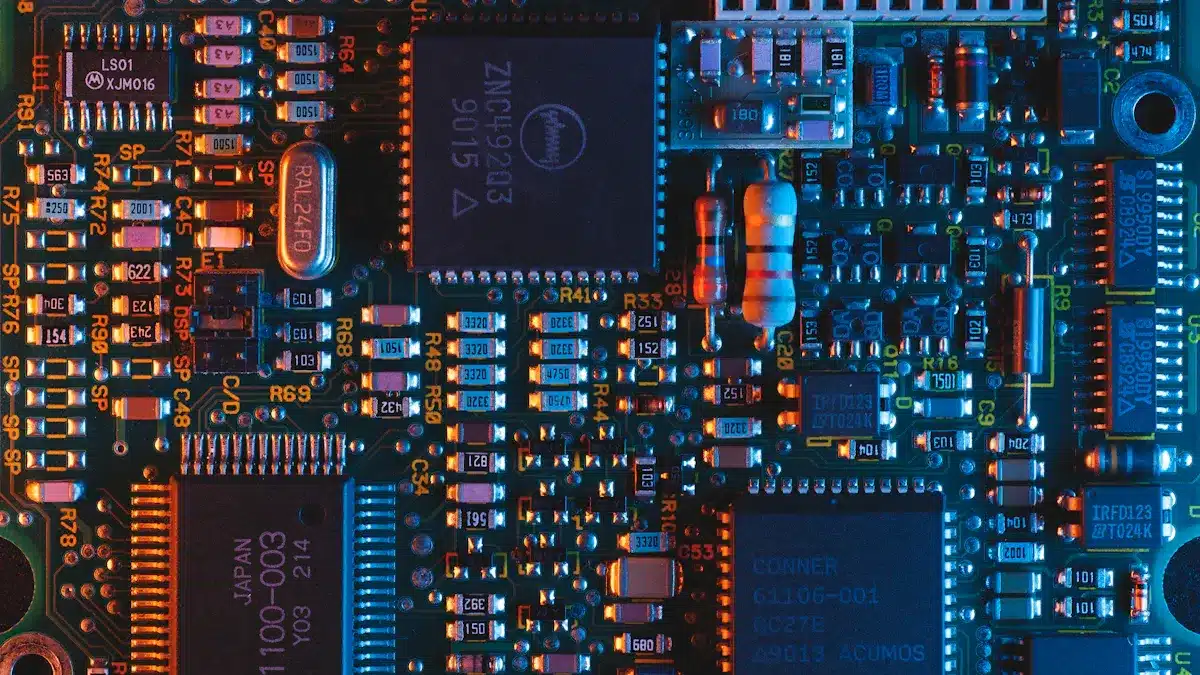

A Beginner’s Guide to the 12 Key Parts on a Circuit Board

You will see these 12 main circuit board parts in almost every beginner electronics project:

Component Type	Description / Function
Resistors	Slow down how much current can move
Capacitors	Hold and let go of electrical energy
Diodes	Let current move in only one direction
Transistors	Turn signals on or off, or make them stronger
Integrated Circuits	Put many electronic parts together in one piece
Inductors	Keep energy inside a magnetic field
Relays	Switches that work with electricity
Oscillators	Make signals that repeat over and over
LEDs	Give off light
Switches	Turn circuits on or off
Transformers	Move electrical energy from one place to another
Connectors	Join different parts on a circuit board

Learning to spot electronic parts on pcbs helps you build circuits better. You will find these parts often on printed circuit boards. Simple tips can help you pick the right parts for your pcb projects.

Key Takeaways

• Learning to spot common circuit board parts like resistors, capacitors, and diodes helps you see how electronics work. It also makes building and fixing circuits easier.

• Each part has a special job. Some control current. Some store energy. Others switch signals. Knowing what each part does helps you choose the right ones for your projects.

• You can use easy tips like reading color codes. You should check polarity. You can match parts to their symbols. These steps help you work faster. They also keep your circuits safe and working well.

Common Circuit Board Components

When you begin using pcbs, you will notice many parts. Each part has a special job to help circuits work. If you learn to spot these common circuit board components, you will know how a printed circuit board works. Here is a simple guide to the most important circuit board components you will see on most pcbs:

Component	What It Does
Resistors	Slow down or control the flow of current in circuits.
Capacitors	Store and release electrical energy when needed.
Inductors	Keep energy in a magnetic field, often used in filters.
Potentiometers	Let you adjust resistance, like turning a volume knob.
Transformers	Move electrical energy between circuits, changing voltage levels.
Diodes	Allow current to move in only one direction, protecting circuits.
Transistors	Work as switches or amplifiers in electronic circuits.
Silicon-Controlled Rectifiers (SCR)	Act as switches for controlling larger power loads.
Integrated Circuits (ICs)	Combine many electronic components into one small chip.
Crystal Oscillators	Create steady timing signals for electronics.
Switches and Relays	Turn circuits on or off, either by hand or with electricity.
Sensors	Detect changes in the environment and send signals to the pcb.

💡 Tip: When you look at a pcb, try to match these electrical components to their symbols or shapes. This skill will help you build and fix circuits faster.

You will see these electronic components on almost every pcb. They are the main parts of electronics. If you learn about these common components, you can start making your own circuits and see how printed circuit boards work. The more you practice, the easier it gets to spot each type of component on real pcbs.

Resistors

Function

Resistors are in almost every electronic device. They control how much current moves in a circuit. Resistors keep parts like LEDs safe from too much current. They also help split voltage and set up other components, like transistors. You use resistors to match circuits, control gain, and fix timing. They turn some electrical energy into heat. This keeps your circuits safe and working well. Pick a resistor by checking its resistance, tolerance, and power rating. These things help your circuit work the right way.

💡 Tip: Look at the color bands on resistors. The bands show the resistance value. This helps you pick the right resistor for your project.

Types

There are many types of resistors. Each type has a special use. Some resistors have one value. Others let you change the resistance.

Here are the most common types you will see:

Resistor Type	Description	Typical Applications
Carbon Composition	Made from carbon powder; handles high energy pulses	Vintage electronics, surge protection
Wirewound	Metal wire on a core; high power and accuracy	Power supplies, audio equipment
Metal Film	Thin metal layer; precise, low noise, stable	Measuring tools, automotive, audio circuits
Carbon Film	Thin carbon layer; cost-effective	Consumer electronics, automotive
Surface Mount (SMD)	Small, mounts on PCB surface; saves space	Phones, laptops, medical devices
Potentiometers	Adjustable resistor with a knob or slider	Volume controls, light dimmers
Rheostats	Variable resistor for current adjustment	Motor speed, heater controls

Carbon film resistors are cheap and easy to find. You use them for simple projects. Metal film resistors are good for accuracy and low noise. Wirewound resistors work for high power jobs, like power supplies. Surface mount resistors are tiny and fit in small spaces. They are used in modern gadgets. Potentiometers and rheostats let you change resistance. This helps you control things like volume or light.

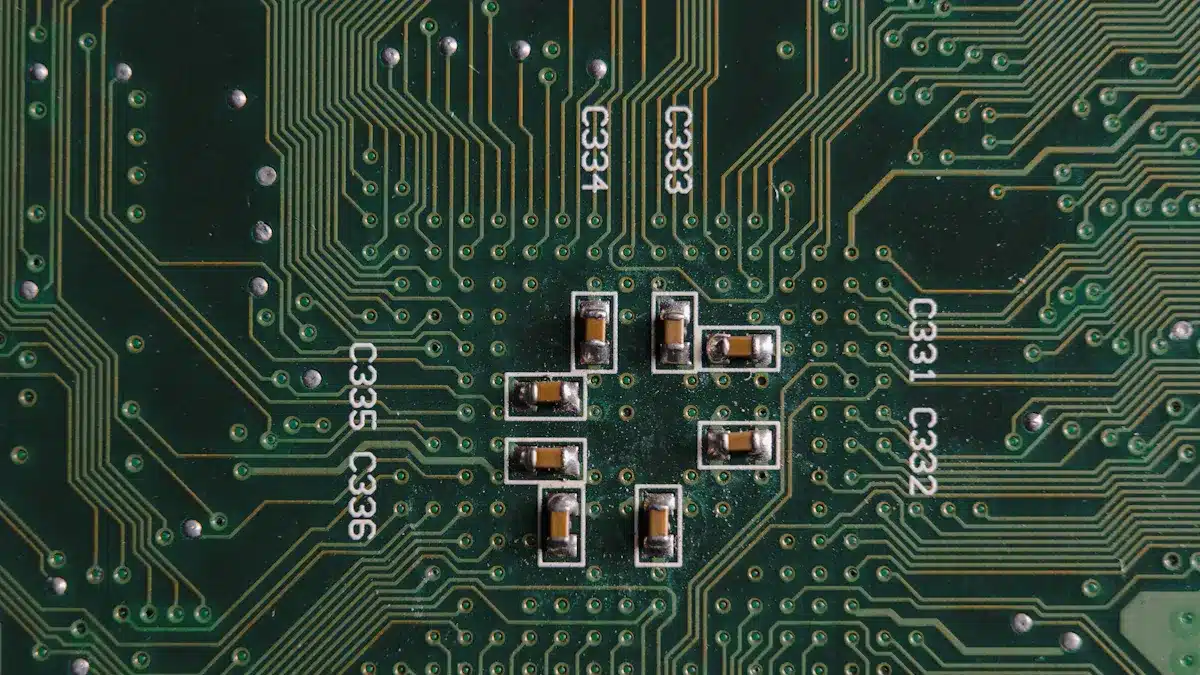

Capacitors

Function

Capacitors are in almost every electronic device. They store energy between two plates with a dielectric. When you put a capacitor in a circuit, it charges and discharges fast. This helps keep voltage steady and the circuit stable. Capacitors stop direct current (DC) but let alternating current (AC) go through. You can use them to filter noise and protect parts. They also help keep signals clean.

📝 Note: Capacitors help your computer or phone work better by blocking spikes and noise. They give quick energy when your circuit needs it.

Here are some ways capacitors help circuits:

• Keep voltage steady and stop sudden power changes.

• Filter noise and keep signals clear.

• Let AC signals pass but block DC.

• Protect parts from voltage spikes.

• Help control timing in things like clocks or alarms.

Types

There are many types of capacitors on a circuit board. Each type has a special job and features. The dielectric inside decides how the capacitor works.

Capacitor Type	Dielectric Material	Key Features	Common Uses
Ceramic	Ceramic compounds	Small, good for high-frequency, low cost	Noise filtering, decoupling
Film	Plastic films	Stable, reliable, long life	Audio, precision circuits
Electrolytic	Liquid electrolyte	High capacitance, polarized, larger size	Power supply filtering
Tantalum	Tantalum oxide	Compact, stable, reliable	Mobile devices, medical gear
Polymer	Conductive polymer	Low resistance, stable	High-performance power supplies

Some capacitors are polarized, like electrolytic and tantalum. You must connect these the right way. Others, like ceramic and film, work either way. Fixed capacitors have one value. Variable capacitors let you change how much energy they store.

💡 Tip: Always look at the markings on a capacitor before using it. This helps you choose the right one for your project.

Inductors

Function

Inductors are important in many electronic circuits. When current goes through an inductor, it makes a magnetic field. This lets the inductor store energy. Inductors help stop quick changes in current. You see them in power supplies to keep current steady. Inductors and capacitors work together in tuned circuits. These circuits help radios and wireless devices get the right signals. In audio equipment, inductors block unwanted noise. They also help transformers move energy and change voltage. Inductors protect circuits by stopping sudden current spikes.

💡 Tip: If you spot a wire coil on a circuit board, it is probably an inductor. Its size and shape can show what it does.

Here are some ways people use inductors:

• Store energy in power supplies and converters

• Remove noise from signals in audio and radio circuits

• Set timing and frequency in oscillators

• Move energy in transformers

• Sense objects in sensors

Types

Inductors have many shapes and sizes. Each type works best for certain jobs. The core material and shape change how the inductor works.

Inductor Type	Core Material / Shape	Key Features & Uses
Air Core	Air or ceramic	Good for high-frequency circuits and RF filters
Laminated Core	Steel laminations	Handles high current, used in transformers
Ferrite Core	Ferrite (magnetic)	Compact, works well in filters and switching circuits
Toroidal Core	Donut-shaped, ferrite or iron	Low noise, used in power supplies and communication
Bobbin	Cylindrical, various materials	Used in adapters and power circuits
Axial Fixed	Miniature ferrite bobbin	Common in RF and resonant circuits
Multilayer Chip	Ceramic with metal layers	Very small, found in phones and computers

📝 Note: Always check the size, core, and markings before picking an inductor. These things help you choose the right one for your circuit.

Diodes

Function

Diodes are in almost every electronic circuit. They work like one-way doors for electricity. Current can only go from the anode to the cathode. This keeps your circuit safe from damage. If you put a battery in backwards, diodes stop the wrong current. This protects your parts.

Diodes also help turn AC into DC. This is needed in power supplies and chargers. Zener diodes do something special. They keep voltage steady by letting current go backward at a set voltage. This stops voltage spikes from hurting your circuit. Flyback diodes protect motors and relays from sudden voltage jumps. You should test diodes with a multimeter often. This helps your circuits stay safe and work well.

💡 Tip: Always look at the stripe on a diode before you solder it. The stripe shows which side is the cathode.

Types

There are many types of diodes on circuit boards. Each type does a special job. Here are some common ones:

• Rectifier diodes: Change AC into DC for power supplies.

• Zener diodes: Keep voltage steady and stop spikes.

• Flyback diodes: Protect motors and relays from surges.

• PIN diodes: Used in radio and high-frequency circuits.

• Silicon Controlled Rectifiers (SCRs): Control lots of power in AC circuits.

• Shockley diodes: Work as switches that turn on at a set voltage.

• Point Contact diodes: Find signals in radios and switch fast.

• Clamping diodes: Stop voltage spikes in data and pulse circuits.

Diode Type	Main Use
Rectifier	AC to DC conversion
Zener	Voltage regulation
Flyback	Inductive load protection
PIN	RF and high voltage switching
SCR	High power control
Shockley	Switching at breakdown voltage
Point Contact	Signal detection, fast switching
Clamping	Voltage spike protection

You can use diodes for signal processing and logic gates. They also help steer current. Each type helps your circuit work better and last longer.

LEDs

Function

You see leds on almost every circuit board. These small components light up when current flows through them. Leds work as indicators, displays, or even as sources of light. When you turn on a device, a led might show that it has power. Leds use special materials like gallium arsenide or gallium phosphide. These materials let leds produce light, which makes them different from regular diodes. Standard diodes only control current flow and do not emit light. Leds are polarized, so current flows in only one direction. You must use a current-limiting resistor with leds to keep them safe from too much current. Leds also use less energy and last longer than traditional bulbs.

💡 Tip: Always check the polarity before you connect a led. The longer leg is usually the anode (positive side).

Types

You will find many types of leds on circuit boards. Each type has a special use:

• Through-hole circular leds: These have a dome shape and come in sizes like 3 mm or 5 mm. You insert them through holes on the board and solder them in place. They can be clear or colored.

• Surface-mount device (SMD) leds: These are tiny chips that sit directly on the board’s surface. They save space and come in many sizes. Some shine light from the top, side, or even the back.

• Multi-color leds: These include bi-color and tri-color types. You can make different colors by changing the current flow. RGB leds can mix red, green, and blue to create many colors.

• Infrared and ultraviolet leds: Infrared leds work in remote controls and sensors. Ultraviolet leds help with sterilization and special industrial tasks.

• Display leds: You see these in seven-segment displays, bargraphs, and arrays. They show numbers or letters on devices.

Leds also appear in opto-couplers, which help keep different parts of a circuit safe from each other.

Transistors

Function

Transistors are very important on a circuit board. They help control how electricity moves. You can use them as switches or amplifiers. As a switch, a small current at the base turns a bigger current on or off. This happens between the collector and emitter. A tiny signal can control a large current. This is useful in digital circuits that need fast switching. As an amplifier, a transistor makes a weak signal much stronger. For example, a microphone picks up a small sound. The transistor can make it loud enough for a speaker. A transistor has three parts: emitter, base, and collector. You change the voltage at the base to control the current. This is why transistors are good for switching and amplifying signals in many devices.

💡 Tip: Imagine a transistor like a faucet. A small turn at the handle (base current) lets a lot of water (collector current) flow. This is how you use a small current to control a big one.

Types

You can find different types of transistors on circuit boards. Each type is best for certain jobs. Here is a table to show the main types and where you might use them:

Transistor Type	Description	Typical Uses and Applications
Bipolar Junction Transistors (BJTs)	Controlled by current, with NPN and PNP types.	Used in audio amplifiers, digital circuits, and current mirrors
Field-Effect Transistors (FETs)	Controlled by voltage, includes MOSFETs and JFETs.	Used in microprocessors, power electronics, and memory
Insulated-Gate Bipolar Transistors (IGBTs)	Mix MOSFET control with BJT power handling.	Used in motor drives, power inverters, and electric vehicles
Phototransistors	React to light, used in optoelectronics.	Used in light sensors and fiber optic communication

BJTs are found in amplifiers and logic circuits. FETs are used in computers and power supplies. IGBTs are good for high power jobs like electric cars. Phototransistors help sense light in sensors. If you learn about these types, you can pick the right transistor for your project.

Integrated Circuits

Function

You can find integrated circuits in almost every electronic device. An integrated circuit puts many tiny parts on one chip. These parts include transistors, resistors, and capacitors. The chip can do hard jobs for you. You use integrated circuits for things like signal processing and power management. They also help with data storage and communication.

• Integrated circuits make devices smaller and more reliable. You can add more features in less space.

• These circuits help you build powerful things like smartphones and computers.

• Using integrated circuits means you need fewer separate parts. This makes your projects easier and more dependable.

• New designs like flexible boards and 3D stacking are possible because of integrated circuits. These new ideas let you make cool shapes and uses for electronics.

📝 Note: Integrated circuits have changed how you build electronics. Now you can make devices that are smaller, faster, and use less energy.

Types

You will see many types of integrated circuits in beginner projects. Each type does a special job. Here is a table to help you learn about the most common ones:

Integrated Circuit Type	Function / Role in Beginner Projects
Analog ICs	Work with signals that change smoothly, like making sound louder or filtering noise (e.g., operational amplifiers, 7805 voltage regulator)
Power Management ICs	Control and send power to other parts, making your design simpler and saving space
Digital ICs	Work with binary data, control logic, and timing (e.g., microcontrollers, logic gates, IC555 timer)
Memory ICs	Store data and programs, such as RAM and ROM
Audio ICs	Make sound louder and change signals between analog and digital
Mixed-Signal ICs	Mix analog and digital features, good for signal conversion and sensor connections (e.g., ADCs, DACs)
Sensor ICs	Connect to sensors and give outputs for things like temperature or light

You often use analog ICs for sound and voltage control. Digital ICs help you make timers and logic circuits. Mixed-signal ICs let you connect sensors and change signals. Power management ICs keep your devices safe and working well.

💡 Tip: If you see a black chip with many legs on a board, it is probably an integrated circuit.

Potentiometers

Function

You use potentiometers to control voltage on a circuit board. A potentiometer has three terminals and works like a variable resistor. When you turn or slide the knob, a wiper moves along a track. This changes the resistance and lets you set the output voltage. Potentiometers act as voltage dividers. This means you can pick the voltage you want for a part of your circuit.

You often see potentiometers in audio and video devices. For example, you use them to change volume, brightness, or contrast. They also help tune circuits and calibrate sensors. Potentiometers sense position in automation systems. In test equipment, they help you measure or set voltages very accurately. Rheostats control current, but potentiometers focus on voltage and signal changes.

💡 Tip: When you move the knob or slider, you change sound, light, or position right away. This makes potentiometers great for hands-on control.

Types

Potentiometers come in different types. Each type has its own way to adjust. The main types are:

Type of Potentiometer	Adjustment Mechanism	Description
Rotary Potentiometer	Rotational knob	Most common; turn the knob to move the wiper along a circular track.
Linear Potentiometer (Slider)	Sliding motion	Move a slider in a straight line; used in audio mixers and equalizers.
Digital Potentiometer	Electronic signals	No moving parts; controlled by digital commands for precise adjustment.

You might also see special types like trimmers for calibration. Logarithmic pots are used for audio volume. Motorized sliders let you control them from far away. Some potentiometers have two controls stacked together. These are called concentric pots. Others use a thumbwheel for easy changes with your finger.

📝 Note: Digital potentiometers are good for automated systems. They do not wear out like mechanical ones.

Transformers

Function

You use transformers to move electrical energy between circuit parts. Transformers help you change voltage up or down. They work by electromagnetic induction. When AC flows in the primary coil, it makes a magnetic field. This field creates voltage in the secondary coil. The number of turns in each coil changes the voltage.

Transformers help keep voltage steady. If a transformer has 100 volts with no load, it might drop to 95 volts with a load. This is a 5% voltage regulation. Good transformers keep this drop small. This gives your devices steady power when loads change. You see transformers in power supplies, chargers, and audio gear.

💡 Tip: Always check the transformer’s voltage rating before using it. This keeps your circuit safe from damage.

Types

You will find different types of transformers on circuit boards. Each type does a special job. Here is a table to help you learn about the most common ones:

Transformer Type	Typical Application(s)
Pulse Transformer	Used in digital circuits for isolated pulse generation; provides isolation between circuits.
Audio Output Transformer	Matches impedance between amplifiers and speakers; used in audio systems.
Current Transformer	Measures AC current; found in meters and instrumentation.
Voltage Transformer	Steps down AC voltage for measurement by microcontrollers or meters.
RF Transformer	Used in radio and communication gear; keeps signals clear at high frequencies.

Pulse transformers are used in digital circuits. Audio output transformers help you get clear sound. Current and voltage transformers let you measure electricity safely. RF transformers keep radio signals strong and clear.

📝 Note: Transformers come in many shapes and sizes. Always pick the right transformer for your project.

SCRs

Function

SCR means Silicon Controlled Rectifier. You use SCRs as switches on a circuit board. An SCR stays off until you send a small pulse to its gate. When you trigger it, the SCR lets current flow one way. It keeps working until the current drops below a set level. This latching makes SCRs good for power control.

You see SCRs in circuits that need high voltage or current. For example, an SCR in a crowbar circuit protects devices from too much voltage. If voltage gets too high, the SCR turns on and makes a short circuit. This blows a fuse and keeps your equipment safe. In AC power control, SCRs help you change power sent to lights or motors. By changing when you trigger the SCR, you can dim lights or control motor speed. You also find SCRs in battery chargers, welding machines, and switching power supplies.

💡 Tip: SCRs are best for strong, reliable switching in high-power circuits.

Common uses for SCRs include:

• Motor speed control

• Light dimmers

• Controlled rectifiers (AC to DC conversion)

• Overvoltage protection (crowbar circuits)

• Welding equipment

• Battery chargers

• High-power switching supplies

Types

You will find different types of SCRs on circuit boards. Each type has special features for certain jobs. Here is a table to help you compare them:

SCR Type	Current Handling	Voltage Handling	Key Features	Typical Applications
Discrete Plastic	Up to 25A	Up to 1000V	Small size, low cost	Small power devices, consumer electronics
Plastic Modules	Over 100A	N/A	Strong, bolt-on mounting	Motor control, industrial machinery
Stud Base	5–150A	Various	Easy to cool with a heat sink	Power transmission, high-load systems
Flat Base	10–400A	N/A	Electrically safe, good isolation	Medium power, needs isolation
Press-Fit	Over 200A	Over 1200V	Great at handling heat	Power stations, industrial control systems

You may also see special SCRs:

• Standard SCRs: Used for general power control.

• Fast-switching SCRs: Good for fast circuits.

• Reverse Conducting SCRs: Have a built-in diode for AC-DC converters.

• Gate-turn-off SCRs (GTOs): Can turn on and off with a gate signal.

📝 Note: Always pick the right SCR for your project’s voltage and current. This keeps your circuit safe and working well.

Crystals and Oscillators

Function

You use crystals and oscillators to keep time in circuits. A crystal is made from quartz and vibrates at one set frequency. This happens when you add electricity. The crystal vibrates because of its piezoelectric properties. In a circuit, the crystal acts like a filter. It only lets one frequency pass through. The oscillator makes this signal stronger and sends it back to the crystal. This creates a steady and stable output.

You find these parts in clocks and computers. They are also in communication devices. They help microcontrollers and processors stay in sync. Crystals and oscillators keep real-time clocks accurate. They work well even when your device uses little power. These parts are stable and precise. This helps your devices work the right way. You can trust them for timing signals that do not drift much, even after a long time.

💡 Tip: If you need good timing, pick a high-quality crystal or oscillator.

Types

You will see different types of crystals and oscillators on boards. Each type has special features for certain jobs:

• Crystals: These are passive parts. They need another circuit to work. They are cheap for big projects but need careful design.

• Oscillators: These have a crystal and a circuit in one part. They are easy to use and save time.

• Oven Controlled Crystal Oscillators (OCXO): These keep the crystal warm for the best stability. You use them in very precise equipment.

• Temperature Compensated Crystal Oscillators (TCXO): These use circuits to fix changes from temperature. They work well in devices that need good stability.

• Voltage Controlled Crystal Oscillators (VCXO): You can change their frequency by changing the voltage. They are used in communication systems.

• Clock Oscillators (XO): These are simple and cost less but are not as stable.

Type	Key Feature	Typical Use
Crystal	Needs external circuit	Watches, microcontrollers
XO	Simple, low cost	General timing
TCXO	Temperature compensation	Mobile devices
OCXO	High stability, heated oven	Lab equipment, GPS
VCXO	Voltage tuning	Radios, telecom

📝 Note: Good board layout and grounding help crystals and oscillators work better and lower noise.

Switches and Relays

Function

A switch lets you control electricity in a circuit. When you flip or press it, you open or close the path. This means you can turn things on or off. Switches are like gates you move by hand.

Relays work as automatic switches. They use a coil to make a magnetic field. When you send a small signal, the coil moves a metal arm. This opens or closes contacts inside the relay. A relay lets you use a small signal to control a big circuit. This keeps you and your devices safe. Relays also help keep circuit parts apart. For example, a relay lets a microcontroller turn on a motor without touching it.

💡 Tip: Pick a relay that matches your circuit’s voltage and current. This helps stop damage from heat or sparks.

Types

There are many types of switches and relays on boards. Each type is made for a special job.

• Switches come in different shapes:

  • Rocker, toggle, and pushbutton switches turn things on or off.

  • DIP switches let you set options on a board.

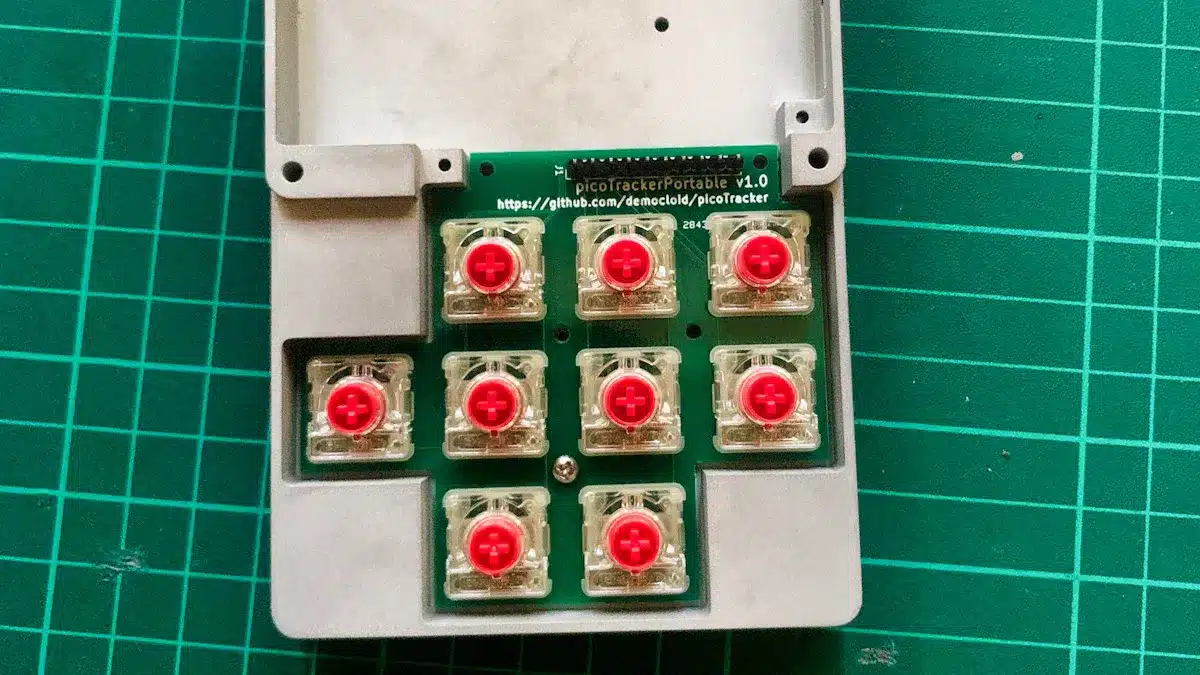

  • Tactile switches are small and used in keypads or remotes.

  • Slide and rotary switches help you pick settings.

• Relays have different kinds too:

  • Electromagnetic relays use a coil and moving parts.

  • Solid state relays use electronic parts and do not move.

  • Reed relays have sealed metal blades for long life.

  • Thermal relays protect motors from getting too hot.

  • Relay modules can be open or closed, and some use opto-isolation for safety.

Component Type	Examples / Subtypes	Typical Applications
Switches	Rocker, Toggle, Pushbutton, DIP, Tactile, Slide, Rotary	Consumer electronics, machinery, safety devices
Relays	Electromagnetic, Solid state, Reed, Thermal, Relay modules	Motor control, circuit isolation, overload protection

You use a switch for easy on/off control. You use a relay for automatic switching and safety. Choosing the right type helps your circuit work well and stay safe.

Identifying Parts on a Circuit Board

When you look at a pcb, you will notice many parts. Learning to spot these circuit board components helps you build and fix things. Use a magnifier or microscope to see small markings and shapes. Many electronic components, like resistors and capacitors, have color bands or numbers. You can use a color code chart or look up the numbers online to find out what they mean.

Schematics are like maps for your pcb. They show where each part goes and how connectors join different areas. Always keep a copy of the schematic close by. If you are not sure about a part, check its datasheet. Datasheets tell you about pinouts, voltage, and other important facts.

📝 Tip: Try using a multimeter to test parts you do not know. This tool lets you measure resistance, voltage, and if a path is complete.

Here are some tools and resources that help you find parts:

• Magnifiers or microscopes to look at tiny details

• Multimeters to check values

• Guides for color codes and symbols

• Online libraries like SnapEDA to compare parts

Be careful with polarized components and check their direction. Make sure connectors and other parts on a circuit board have enough room. Take your time when putting circuit board components on pcbs. Always use your pcb software to check for mistakes before you finish.

If you label and write down each part on your pcb, fixing problems gets easier. Practice these steps, and soon you will know all the main parts on a circuit board.

Knowing the main parts on a circuit board shows you how electronics work.

• You get more confident when you learn to find resistors, capacitors, and other parts.

• Reading the labels and circuit maps helps you fix problems faster.
  Start with easy projects to practice. Then, try harder parts or make your own circuits.

FAQ

What is the easiest way to identify parts on a circuit board?

You can look for labels, shapes, and colors. Use a magnifier to see small markings. Compare what you see with pictures or charts for each part.

Can I replace a part with any similar-looking component?

No, you must match the part’s value and type. Always check the datasheet or markings before you swap any component.

Why do some parts have a direction or polarity?

Some parts, like diodes and electrolytic capacitors, only work one way. If you put them in backward, your circuit may not work or could get damaged.

See Also

Complete Overview Of The PCBA Production Process

Detailed Walkthrough Of Every Stage In PCBA Making

Crucial Advice For Selecting The Best PCBA Mainboard

Frequently Found PCBA Parts And Their Important Roles

Important Terms And Abbreviations In PCB And PCBA
