Capacitors are important parts of modern electronics. A fixed capacitor always has the same capacitance value. In contrast, a variable capacitance capacitor lets you change its capacitance when needed. This difference makes each type useful for different jobs.
For example, variable capacitance capacitors are key in radio tuning. They allow precise adjustments to work correctly. Fixed capacitors are used in devices that need steady and reliable performance. By 2026, variable capacitance capacitors will likely lead the market with 65% of the share. This is because they are popular in telecommunications and consumer electronics. Fixed capacitors will make up the other 35%, showing they are still important in many circuits.
Knowing these differences helps you pick the right capacitor. This ensures your circuit works well and efficiently.
Key Takeaways
Fixed capacitors work steadily and are great for power supplies.
They are also useful in signal filtering and timing circuits.
Variable capacitors can change capacitance, helping tune radios easily.
These are important for communication devices needing adjustments.
Pick a capacitor based on what your circuit requires.
Think about capacitance, how stable it is, and the price.
Fixed capacitors cost less and are more dependable to use.
Variable capacitors let you make precise changes when needed.
Knowing each type’s benefits helps you build better circuits.

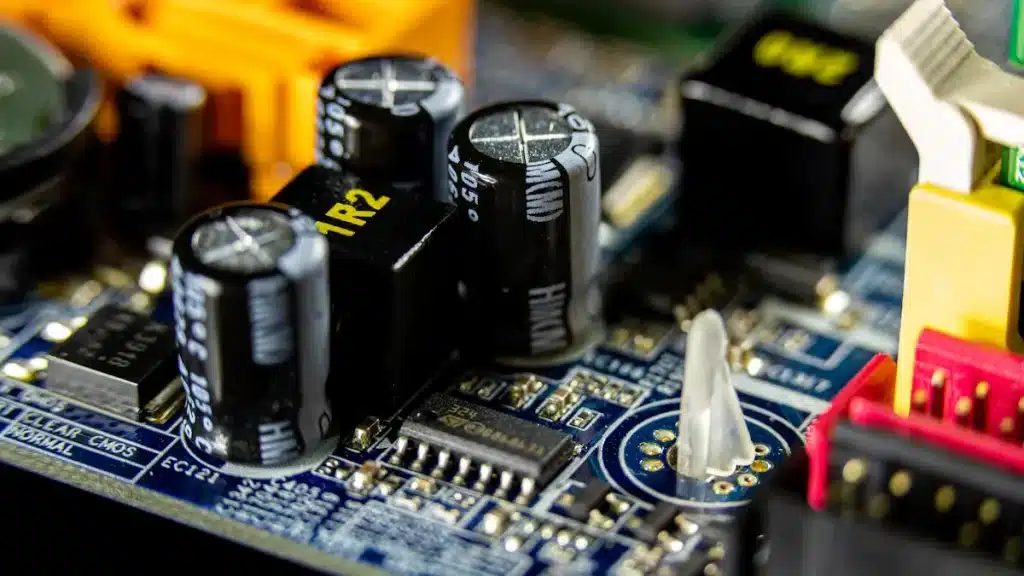

Fixed Capacitors: Features and Uses
What Are Fixed Capacitors?
A fixed capacitor has a capacitance that does not change. Unlike variable capacitors, you cannot adjust it after it is made. These capacitors store and release electrical energy in a steady way. They are very reliable and used in circuits needing stable performance. You can find them in power supplies, signal filters, and timing circuits.
Types of Fixed Capacitors
Fixed capacitors come in different types for various uses. Common ones include ceramic, electrolytic, film, and tantalum capacitors. Ceramic capacitors work well in high-frequency circuits because they have low inductance. Electrolytic capacitors are great for storing lots of energy in power supplies. Film capacitors are stable and often used in audio systems. Tantalum capacitors are small but hold high capacitance, perfect for tight spaces.
Feature | How It Helps in Circuits |
|---|---|
Capacitance | Stores charge, keeping energy flow steady. |
Voltage Rating | Works safely under the circuit's highest voltage. |
Tolerance | Better tolerance means more accurate performance. |
Stability | Works well even with temperature or voltage changes. |
Type (Ceramic, etc.) | Pick based on what the circuit needs (filtering, etc.). |
Knowing these features helps you pick the right capacitor for your project.
Where Fixed Capacitors Are Used
Fixed capacitors are used in many devices. In power supplies, they keep voltage steady. In signal circuits, they block noise and unwanted signals. Timing circuits use them to set time intervals. Audio systems use them to improve sound by keeping signals stable. Their dependability makes them important in modern electronics.
Variable Capacitors: Characteristics and Applications
What Are Variable Capacitors?
A variable capacitor lets you change its capacitance. This happens by adjusting its physical parts. You can move the plates closer or farther apart. Another way is changing how much the plates overlap. For example, some use a rotating axis with curved plates to adjust overlap. These capacitors are important for fine tuning, like in radios and modulators.
The ability to change capacitance makes them very useful. They are common in communication devices, filters, and systems needing flexible capacitance.
Types of Variable Capacitors
Variable capacitors come in different types for specific uses. Below is a table showing their features:
Type of Variable Capacitor | Description |
|---|---|
Fine-tuning Variable Capacitors | Helps with exact adjustments in circuits. |
Single Variable Capacitors | Has one set of movable plates. |
Double Variable Capacitors | Includes two sets of plates for wider capacitance range. |
Quadruple Variable Capacitors | Uses four sets of plates for even more adjustments. |
Mechanical Variable Capacitors | Adjusts capacitance physically, great for radios and amplifiers. |
Electrically Controlled Capacitors | Changes capacitance with voltage, fast and energy-saving. |
Mechanical capacitors last long and stay stable but are bigger. Electrically controlled ones react quickly and use less power but may lose stability.
Common Applications of Variable Capacitors
Variable capacitors are vital in modern electronics. In radios, they help pick specific frequencies by adjusting capacitance. Communication devices use them to fine-tune signals. Filters rely on them to control frequency ranges for better performance.
They are also used in fractional-order elements for precise designs. However, they have limits like small frequency ranges and fewer options to buy. Even with these issues, their adjustable capacitance makes them essential in electronics.
Tip: Pick a variable capacitor based on your circuit’s needs. Think about the capacitance range and precision required.
Fixed vs Variable Capacitors: Key Differences
Capacitance Adjustability
Variable capacitors let you change their capacitance easily. You can adjust them by moving their plates or using voltage in special designs. This makes them great for tasks like tuning radios. For example, trimmer capacitors can adjust from 1 pF to 200 pF. They offer precise tuning with accuracy up to ±1%. Fixed capacitors, however, have a set capacitance that cannot change. They are better for circuits needing steady performance.
Type of Capacitor | Capacitance Range | Tuning Accuracy |
|---|---|---|
Fixed Capacitor | N/A | N/A |
Trimmer Capacitor | 1-200 pF | ±1% to ±10% |
Tip: Use variable capacitors for flexible tuning. Choose fixed capacitors for stable and reliable circuits.
Stability and Reliability
Fixed capacitors are very stable and reliable. They work well even in tough conditions like high heat or changing voltages. This is why they made up 45% of the global market revenue in 2023. Variable capacitors are flexible but less stable in extreme conditions. Thin film variable capacitors are small and light but wear out faster in heat or high frequencies.
Variable capacitors are becoming more popular because they are adaptable. The Air Dielectric Variable Capacitor Market is expected to grow from USD 1.2 billion in 2024 to USD 1.8 billion by 2033. But if your circuit needs long-lasting reliability, fixed capacitors are a safer choice.
Cost and Availability
Fixed capacitors are cheaper and easier to find. They are a cost-effective choice for many uses. Variable capacitors, especially advanced ones, cost more. Trimmer capacitors are affordable but harder to find due to their specialized design.
Fixed capacitors sell more because they are affordable and widely available. Variable capacitors are pricier but are growing in demand. This is because they adapt to changing power needs. If you need adjustable capacitance, variable capacitors are worth the extra cost. For budget-friendly options, fixed capacitors are better.
Suitability for Specific Applications
When building circuits, pick the right capacitor for the task. Fixed and variable capacitors have special strengths for different uses. Knowing these strengths helps you make smarter choices.
Fixed Capacitors: Reliable and Stable
Fixed capacitors are great for jobs needing steady performance. Their capacitance stays the same, making them perfect for stable circuits. They work well in DC blocking, RF bypassing, and tuning filters or oscillators. These capacitors are also trusted for long-term reliability.
Here’s a closer look at a fixed capacitor, like the Skyworks MIS Chip Capacitor:
Feature | Description |
|---|---|
Type | Fixed Capacitor (Skyworks MIS Chip Capacitors) |
Applications | DC blocking, RF bypassing, fixed capacitance tuning in filters, oscillators, matching networks |
Dielectric | Thermally grown silicon dioxide with silicon nitride layer |
Temperature Coefficient | Less than 50 ppm/°C |
Operating Temperature Range | -65 °C to 200 °C |
Insulation Resistance | Greater than 105 M Ohm |
Q Factor | Higher than ceramic capacitors |
Insertion Loss | 0.04 dB in a 50 Ohm system |
Stability | Excellent long-term stability, suitable for high reliability applications |
Capacitance Density | Larger capacitance per unit area than previous catalog offerings |
Packaging Options | Available in expanded film frame or waffle packs with testing options |
These features make fixed capacitors reliable for power supplies, filters, and timing circuits. They perform well even in extreme heat or voltage, ensuring dependability.
Variable Capacitors: Flexible and Adjustable
Variable capacitors are useful when adjustable capacitance is needed. You can change their capacitance, which is great for tuning radios or communication devices. For example, in radios, they help select specific frequencies. They are also helpful in filters and modulators for precise frequency control.
Different types of variable capacitors suit various needs. Mechanical ones are durable and work well in radios and amplifiers. Electrically controlled ones adjust quickly and save energy, making them ideal for modern telecom systems.
Tip: Pick a variable capacitor based on the capacitance range and precision your circuit requires.
Choosing the Right Capacitor for Your Application
To choose between fixed and variable capacitors, think about your circuit’s needs. Fixed capacitors are best for stable and reliable performance. Variable capacitors are better for flexibility and fine adjustments.
By understanding each type’s strengths, you can design circuits that work efficiently and meet your goals.
How to Choose the Right Capacitor for Modern Circuit Designs
Factors to Consider
Picking the right capacitor means checking several important things. Each one helps ensure the capacitor fits your circuit’s needs. Here’s what to think about:
Capacitance Value: Choose the capacitance based on energy storage or filtering needs. For instance, 0.1 uF capacitors work well for frequencies above 100 MHz. Combining capacitors can handle a wider range of frequencies.
Impedance Profile: Low impedance capacitors are best for high-frequency circuits. Check this table for examples:
Capacitor Type
Impedance Profile
Frequency Range
0.1 uF
Low
Above 100 MHz
0.01 uF
Higher
Above 100 MHz
Combined
Lowest
Wide range
Dielectric Material: The material affects how stable and reliable the capacitor is. X5R and X7R ceramic capacitors are great for power systems because they stay reliable under different conditions.
Environmental Factors: Think about temperature, voltage, and operating conditions. Class I dielectrics are more stable for precise needs. Class II dielectrics work better for larger tolerances.
Physical Size: The size depends on capacitance, voltage rating, and material. Small designs may need super capacitors for storing lots of energy in tight spaces.
Cost and Availability: Fixed capacitors are cheaper and easier to find. Variable capacitors cost more but are better for adjustable capacitance needs.
Tip: Test your circuit with different capacitors to find the best fit.
When to Use Fixed Capacitors
Fixed capacitors are best for circuits needing steady and reliable performance. Their capacitance doesn’t change, making them perfect for consistent tasks. Here’s where they work well:
Power Supplies: They keep voltage steady and reduce noise.
Signal Filtering: Fixed capacitors block unwanted signals for clearer output.
Timing Circuits: Their exact capacitance sets accurate time intervals.
Audio Systems: They improve sound by keeping signals stable.
For example, the Skyworks MIS Chip Capacitor is highly stable and reliable. It works well in extreme conditions due to its thermal stability and low signal loss.
Note: Fixed capacitors are affordable and easy to find, making them ideal for most circuits.
When to Use Variable Capacitors
Variable capacitors are great for circuits needing adjustable capacitance. They allow fine-tuning, which is useful in dynamic systems. Here’s where they shine:
Radio Tuning: They adjust frequencies to pick specific stations.
Communication Devices: Variable capacitors fine-tune signals for better clarity.
Frequency Filters: They control frequency ranges with precision.
Modulators: These capacitors help with accurate frequency modulation.
Variable capacitors are especially helpful in telecommunications. Electrically controlled ones adjust quickly and save energy, making them perfect for fast systems.
Tip: Choose a variable capacitor based on the capacitance range and precision your circuit needs.
By considering these factors and uses, you can pick the right capacitor. This ensures your circuit works efficiently and reliably.
Knowing the difference between fixed and variable capacitors helps you choose better. Fixed capacitors are steady, so they work well in power supplies, filters, and timing circuits. Variable capacitors are flexible, letting you change capacitance for tasks like tuning radios or filtering signals.
Use Area | Why Variable Capacitors Are Helpful | Example Use |
|---|---|---|
RF Circuits | Change capacitance to match impedance and reduce signal loss. | Used in RF circuits to improve power transfer. |
Oscillator Circuits | Adjust capacitance to change oscillation frequency. | Create tunable oscillators for different frequencies. |
Communication Devices | Fine-tune receivers to pick specific frequencies and filter signals. | Tuning circuits in communication systems. |
Cars | Adjust circuits in infotainment systems for better performance. | Tune radio frequencies in vehicles. |
When picking a capacitor, think about your circuit’s needs. Fixed capacitors are best for steady and reliable tasks. Variable capacitors are better if you need flexibility or precise adjustments. Look at factors like capacitance range, stability, and cost to find the right one for your project.
FAQ
1. What’s the key difference between fixed and variable capacitors?
Fixed capacitors always have the same capacitance. Variable capacitors let you change their capacitance. Fixed ones are great for steady circuits. Variable ones are better for tuning or flexible tasks.
2. How can you pick the right capacitor for your circuit?
Think about capacitance, stability, size, and cost. Fixed capacitors work well for steady jobs like power supplies. Variable capacitors are good for adjustable tasks like tuning radios or filtering signals.
3. Can variable capacitors replace fixed ones in all circuits?
No, variable capacitors aren’t as stable and cost more. Fixed capacitors are better for reliable, long-lasting circuits. Variable capacitors are best for tasks needing frequent changes or flexibility.
4. Are fixed capacitors cheaper than variable capacitors?
Yes, fixed capacitors cost less and are easier to find. Variable capacitors are pricier because they can adjust. Use fixed capacitors for affordable designs and variable ones for special needs.
5. Where are variable capacitors commonly used?
Variable capacitors help tune radio frequencies. They improve signals in communication devices. Filters use them for precise frequency control. They’re also useful in modulators and systems needing adjustments.
