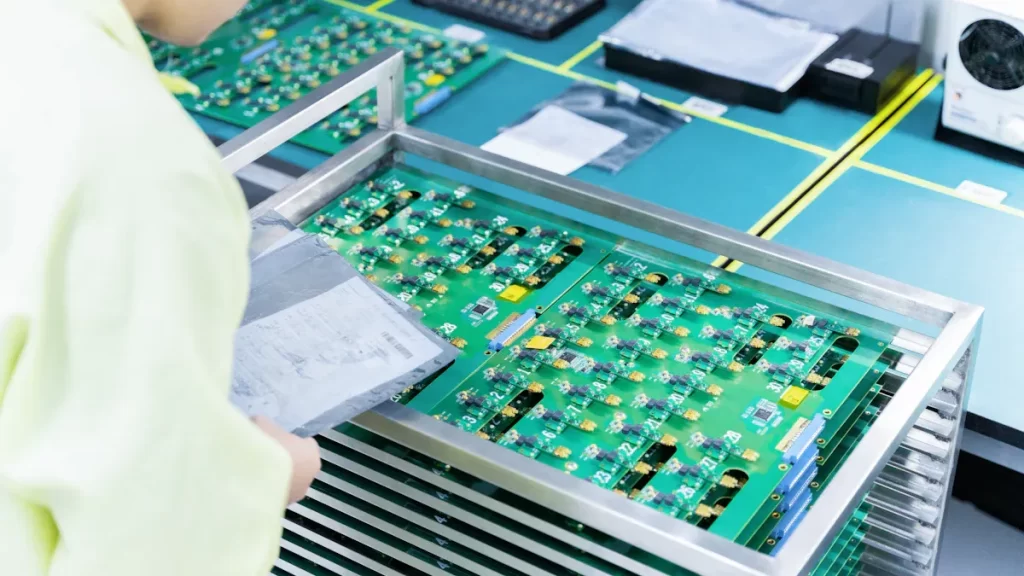

What is Lead-Free and Halogen-Free PCBA

Lead-free and halogen-free PCBA are safer for people and nature. These boards remove harmful materials like lead, bromine, and chlorine. This helps lower pollution and health dangers.

The RoHS rule started in 2006 to limit bad substances. Lead-free PCBs skip toxic metals, while halogen-free PCBs have less than 900 ppm chlorine or bromine and 1500 ppm total halogens. Research shows halogen-free materials are stronger because they expand less with heat.

Using lead-free and halogen-free PCBA helps protect the planet and makes electronics safer for everyone.

Key Takeaways

Lead-free and halogen-free PCBA are better for health and nature. They remove harmful stuff like lead and bromine.
Lead-free solder, like Sn-Ag-Cu, makes products stronger and work better. It helps them handle heat and pressure.
Following rules like RoHS stops fines and allows safer electronics in more markets.
Halogen-free materials improve how electronics work and last longer. They are great for tough jobs in aerospace and medical fields.
Using lead-free and halogen-free methods keeps people safe and supports green manufacturing.

Materials and Standards in Lead-Free and Halogen-Free PCBA

Materials Used in Lead-Free PCB Assembly

Lead-free PCB assembly uses materials without harmful lead. The Sn-Ag-Cu alloy is the most common choice. It provides good soldering and is reliable. Its melting point is between 221°C and 227°C. For example:

Alloy System	Melting Temperature	Composition (Ag/Cu)
Sn-Ag-Cu	221°C (Sn-Ag)	3-4% Ag, 0.5-1% Cu
	227°C (Sn-Cu)
	779°C (Ag-Cu)

Lead-free finishes like immersion silver and ENIG are also used. These finishes help soldering and stop boards from rusting. Using these materials meets environmental rules and ensures quality.

Materials Used in Halogen-Free PCBs

Halogen-free PCBs use safer materials instead of harmful halogens. Modified FR-4 is a popular halogen-free material. It balances cost, performance, and reliability. High-performance halogen-free materials are used in tough fields like aerospace and medical devices. These materials improve electrical performance and reliability. For example:

Material Type	Performance Improvement Description
Modified FR-4	Offers good performance, reliability, and cost for general uses.
High-Performance Materials	Made for tough thermal and electrical needs, with better performance.
Halogen Free Laminate	Replaces unsafe flame retardants, meeting strict safety rules.
Better Electrical Performance	Reduces signal loss, making it great for fast data applications.
Enhanced Reliability	Handles heat and moisture better, staying stable in tough conditions.
Excellent Physical Properties	Strong and durable, helping make better-quality PCBs.

Using halogen-free materials makes electronics safer and eco-friendly. These materials meet the need for greener technology.

Industry Standards like RoHS and Compliance Requirements

Rules like RoHS control harmful substances in electronics. RoHS ensures products are free of lead, mercury, and halogens. Since it started, RoHS now limits ten harmful substances. This shows the push to reduce toxic materials.

Following RoHS and similar rules, like Europe’s REACH, has increased the use of lead-free and halogen-free PCBs. For example:

In 2023, 78% of suppliers used RoHS-compliant materials, up from 58% in 2018.
Europe’s REACH and RoHS rules led to 90% lead-free use in EU electronics by 2020.
Big companies like Apple want partners to stop using halogens by 2025.

Breaking these rules can cause big problems. This includes recalls, fines, and losing market access. For example, some pro d ucts were recalled in 2024 for breaking RoHS rules. Following these standards avoids risks and ensures global safety and environmental compliance.

Manufacturing Processes for Lead-Free and Halogen-Free PCBA

Lead-Free Soldering Techniques

Lead-free soldering makes electronics safer and eco-friendly. It uses solder paste without lead, often made of Sn-Ag-Cu alloys. This paste melts at higher temperatures than lead-based solder. Precise heat control is needed during soldering. Lead-free reflow soldering is a common method. It heats the paste to connect parts to the PCB.

Another method is lead-free wave soldering for through-hole parts. The PCB passes over molten solder to form strong joints. Switching to lead-free soldering needs process changes. For example:

Higher melting points need better tools to avoid heat damage.
Lead-free paste resists rust, making it good for tough conditions.
Adjusting soldering profiles reduces defects and improves strength.

Rules like RoHS and IEC guide how to use lead-free solder. These rules help meet safety and quality standards.

Assembly Processes for Halogen-Free PCBs

Halogen-free PCBs need special care during assembly. These boards avoid harmful halogens, making them safer and greener. Their unique features require careful handling.

Soldering halogen-free PCBs uses lead-free solder and adjusted heat profiles. Halogen-free materials behave differently, so soldering must be optimized. Using nitrogen during reflow soldering reduces oxidation and improves joints. Automation, like pick-and-place machines, boosts accuracy and lowers costs.

Testing is key to ensure quality. Tests check how halogen-free PCBs handle stress and the environment. By improving processes and using advanced methods, you can make reliable and eco-friendly electronics.

Tools and Equipment for One-Stop Lead-Free PCB Assembly

One-stop services provide tools for lead-free PCB assembly. These include SMT, THT, and hybrid options. Both leaded and lead-free assembly are offered for different needs.

For lead-free assembly, precise tools like laser-cut stencils are important. These stencils work well with small parts like BGA components. Testing is also crucial. Common tests include:

Checking surfaces for defects.
X-ray tests for hidden solder joints.
Automated Optical Inspection (AOI) to find errors.
In-Circuit Testing (ICT) and functional tests to check performance.

Using advanced tools and thorough testing ensures high-quality results. These services also help meet environmental rules.

Benefits of Lead-Free and Halogen-Free PCBA

Environmental and Health Advantages

Using lead-free and halogen-free PCBA helps people and nature. Halogen-free PCBs remove harmful chemicals like bromine and chlorine. This lowers risks during making and throwing away electronics. For example:

Health Problems from Halogens	Benefits of Halogen-Free PCBs
Feeling sick	Removes harmful chemicals
Skin problems	Better heat reliability
Breathing issues	No harm to nature when thrown away
Dioxin creation	Works well in high heat processes

Lead-free PCBs also make workplaces safer and greener. Most factories now use lead-free methods. This makes it easier to pick eco-friendly electronics. It also keeps workers safe and reduces harm when recycling.

Better Product Performance and Strength

Lead-free PCBs make devices stronger and more reliable. Research shows Sn-Ag-Cu solder works well under heat and stress. For example:

Tests found Sn-Ag-Cu solder is as strong as Sn-Pb solder. Parts lasted over 3,500 heat cycles, proving their durability.

These materials also handle heat better. Halogen-free PCBs are great for high-heat uses. Pull tests after heat cycles show their strength. This means your devices last longer and work better.

Rules and Market Benefits

Using lead-free and halogen-free PCBA follows global rules like RoHS. These rules limit harmful materials in electronics. Following them avoids fines and opens new markets. For example:

Market Type	Value (2023)	Future Value (2032)	Growth (%)	Reasons for Growth
Rigid Halogen-free CCL Market	$1.8 billion	$3.5 billion	7.5	Need for green parts, rules, and tech growth

More people want safer, greener electronics. This increases demand for halogen-free PCBs. Schools and companies work together to create new ideas. This ensures you get the best and safest products.

Challenges in Lead-Free and Halogen-Free PCBA Manufacturing

Technical and Material Limitations

Making lead-free and halogen-free PCBs has unique challenges. You must use materials that follow strict rules like RoHS. These rules, active since 2006, limit harmful substances like lead and flame retardants. This means using lead-free solder and special flux, which can change how PCBs are made.

Lead-free soldering needs higher heat, about 30-40°C more than usual. This extra heat can stress parts and materials, causing problems. Halogen-free materials also behave differently with heat, making them harder to work with. For example:

Lead-free soldering needs careful heat control to avoid mistakes.
Halogen-free boards may warp or misalign due to heat.
Finding materials that work well, cost less, and follow rules is tough.

These issues mean you must pick the right materials and improve processes to ensure good quality.

Cost Implications

Switching to lead-free PCBs can cost more money. Higher heat levels need better tools that can handle it. Lead-free solder and flux also cost more than older materials. While these changes help the environment, they can be expensive.

For example:

Lead-free soldering needs special tools and uses more energy.
Lead-free alloys and raw materials are pricier.
Changing production lines to meet rules costs a lot upfront.

Even with higher costs, lead-free PCBs offer long-term benefits like following rules and reaching more markets.

Supply Chain and Manufacturing Challenges

Getting materials for lead-free and halogen-free PCBs can be tricky. Equipment and raw materials cost a lot at first. Small mistakes during production can cause many faulty products, so strict quality checks are needed.

Environmental rules make things harder. PCB factories create waste, so green methods are needed to follow the rules. Fast tech changes also mean you must keep learning new ways to stay competitive.

Market needs can change quickly, forcing you to adjust plans. For example:

A sudden rise in demand for green electronics can strain supplies.
Delays in getting compliant materials can slow production.

By solving these problems, you can make eco-friendly products and stay ahead in the market.

Applications of Lead-Free and Halogen-Free PCBA

Consumer Electronics

Lead-free and halogen-free PCBs are changing electronics. These materials are safer and follow strict eco-rules. Companies like Apple now use them to meet green goals. For example, Apple’s zero-waste plan pushes suppliers to switch.

Demand for halogen-free PCBs is high in Europe and North America. In Europe, rules like WEEE and EPR reduce harmful materials. These rules make companies cut toxic substances in electronics. In North America, the U.S. military banned lead soldering, speeding up adoption.

Region	Key Drivers	Impact on Adoption
Europe	WEEE and EPR rules	High costs push demand; auto and industry sectors lead with 68% demand.
North America	U.S. military ban on lead soldering	Faster adoption in reliable sectors; Apple’s green goals influence suppliers.
Emerging Markets	Export needs from EU/U.S.	Brazil spends 15-20% of budgets on compliance; South Africa fines for breaking rules.
APAC	Solder alternatives investment	Leads in adoption due to tech readiness; cost issues in small markets.
Africa	E-waste and supply chain issues	Slow adoption, but recycling hubs in Rwanda aim for better compliance by 2026.

Outsourcing to EMS providers also helps. They make eco-friendly electronics quickly and efficiently.

Automotive Industry

Cars need lead-free and halogen-free PCBs for safety and eco-rules. Laws like EU ELV and China RoHS 2.0 push this change. These materials make cars safer and less harmful to nature.

Using SAC305 solder in lead-free PCBs boosts durability by 25%. This helps car electronics survive tough conditions. South Korea uses nitrogen ovens for soldering, reaching 99.97% compliance with green rules.

A 2023 study showed AEC-Q200-compliant PCBAs had 96% fewer failures. These PCBAs worked well in sensors exposed to engine heat. This makes cars safer and more reliable for drivers.

Medical Devices

Medical devices need safe and reliable PCBs. Lead-free and halogen-free PCBs reduce toxins, keeping patients safe. These materials also handle heat better, which is key for MRI machines and surgical tools.

More medical companies now use halogen-free PCBs for greener products. These PCBs improve electrical performance, ensuring accurate results. Many companies outsource to EMS providers for high-quality PCBs. EMS providers meet strict medical standards and ensure safety.

Choosing lead-free and halogen-free PCBAs helps create safer medical devices and a healthier planet.

Aerospace and Defense

The aerospace and defense fields need very reliable and strong PCBs. Lead-free and halogen-free PCBs work well because they resist heat and chemicals. These features make them perfect for important systems where failure is not allowed.

Halogen-free PCBs are now common in planes, radios, and defense tools. They work well in tough conditions and keep systems running smoothly. For example, plane systems use these PCBs to stay stable during fast temperature changes. Radios use them to send data better with less signal loss in high-frequency settings.

Why Halogen-Free PCBs Are Great for Aerospace and Defense:
- They follow strict eco-rules, cutting harmful emissions.
- They resist heat, stopping damage or bending under high temperatures.
- They stay strong in harsh environments, lasting longer.

Lead-free PCBs are also important in this field. Without lead, they are safer for nature but still strong enough for tough uses. SAC305 solder, used in lead-free PCBs, is very durable. It handles shaking and impacts often found in aerospace and defense gear.

Using lead-free and halogen-free PCBs meets global eco-rules and keeps systems reliable. These materials improve performance and help create a safer and cleaner future for the industry.

Lead-free and halogen-free PCBA are important in today’s electronics. They remove harmful chemicals, making devices safer for people and nature. Using materials like halogen-free FR4 helps meet safety rules and boosts performance. These changes protect health and promote eco-friendly practices.

The future of halogen-free PCBs looks bright. Studies show more use of green materials and stricter rules shaping the industry. As technology grows, expect new ideas that focus on safer designs and following global standards.
