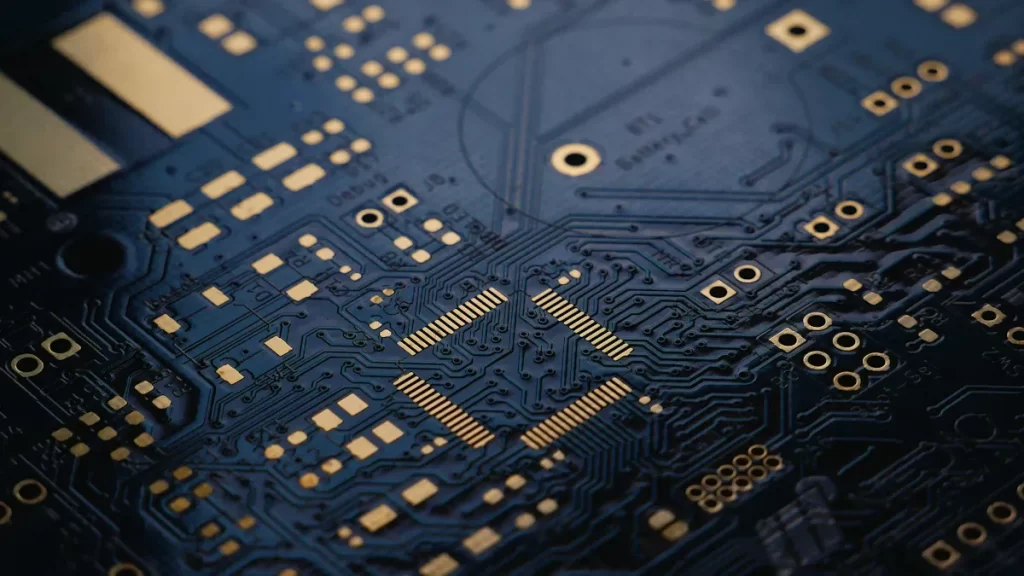

Ensuring Quality in PCB Assembly for Industrial Automation in 2025

In industrial automation, quality assurance in industrial automation PCB assembly is crucial. It ensures that machines operate efficiently and without issues. To prevent costly errors, it is essential to prioritize the quality of PCBs. By 2025, companies will face more complex designs and stricter regulations. However, improved testing tools and increased automation will enable them to work more swiftly. Implementing quality assurance not only reduces mistakes but also fosters innovation, helping companies remain competitive in a challenging market.

Key Takeaways

Focus on quality checks in PCB assembly to work better and avoid expensive mistakes.
Choose approved parts that follow industry rules for good performance and trust.
Use detailed tests like Automated Optical Inspection (AOI) to find problems early.
Make processes the same and use live updates to reduce errors and help teamwork.
Train workers often to keep skills strong and follow quality rules.

Component Selection and Qualification

Finding dependable and certified parts

Choosing the right parts is key to good PCB quality. Always pick parts that follow industry rules and certifications. Reliable parts help PCBs work well in tough conditions. Look for certifications like ASME and IPC standards. These prove the parts are made to be dependable.

ASME standards: Focus on making PCB designs and builds reliable.
IPC standards: Based on ASME, they ensure strict quality checks.

Using certified parts lowers failure risks and boosts assembly quality. Working with trusted suppliers who follow these rules makes sourcing even better.

Testing parts carefully

After getting the parts, testing them is very important. Tests check if parts are safe, reliable, and work well before use. Different tests help make sure everything is checked properly.

Testing Method	What It Does	Why It’s Important
Automated Optical Inspection (AOI)	Finds problems like bad solder or broken joints.	Spots issues during manufacturing.
Continuity Test	Uses DC current to find open or short circuits in bare boards.	Confirms the PCB’s electrical connections are correct.
Hi-pot Test	Applies high voltage to check isolation between different areas.	Ensures safety for high-voltage uses.
In-circuit Testing	Checks for shorts, opens, and measures voltage or current at test points.	Makes sure parts on the PCB work properly.
Resistivity of Solvent Extract (ROSE)	Tests for leftover solder flux by measuring conductivity.	Confirms the PCB is clean.
Time Domain Reflectometry (TDR)	Measures impedance in traces to check signal quality.	Ensures high-speed signals work well.
Stress Testing	Includes tests like vibration, heat changes, and harsh conditions.	Checks if the PCB lasts under tough situations.
IPC Standards	Guidelines like IPC-6011, IPC-6012D, and IPC-6013D ensure proper size and performance.	Makes sure PCBs meet safety and reliability rules.

Testing helps find problems early so only good parts go into your PCB assembly.

Reducing supply chain risks and tracking parts

Keeping supply chains safe is key to good PCB quality. Make sure every part can be traced back to where it came from. This helps confirm parts are real and meet industry rules.

To lower risks:

Choose suppliers who give detailed part records.
Use software to track and manage your supply chain.
Check your suppliers often to ensure they meet your standards.

Tracking parts also helps fix problems fast. If something goes wrong, you can find the source and fix it. This careful method improves quality in industrial automation PCB assembly.

Design Optimization and Process Standardization

Checking schematics and layouts for correctness

Good schematics and layouts are key to making strong PCBs. Every design must be checked to meet both function and manufacturing needs. Mistakes in schematics can cause delays and cost extra money.

To avoid errors:

Use Design for Manufacturability (DFM) to make layouts easier to build.
Run Automated Design Rule Checks (DRC) to confirm trace sizes and spacing.

These steps help catch mistakes early and speed up production. They also make the final product more reliable for industrial automation systems.

Evidence Type	What It Does
Design for Manufacturability (DFM) Checks	Makes layouts simpler to build and assemble.
Automated Design Rule Checks (DRC)	Finds errors in trace size, spacing, and part placement.
Key Benefits	Cuts down on mistakes, saves time, and ensures designs follow rules.

Using standard processes to lower mistakes

Standard processes help reduce errors during PCB assembly. Clear workflows remove confusion and outdated details. Sharing updated files in real-time helps teams work faster and better together.

Why standardization matters:

Reuse parts easily with shared libraries.
Track changes with version control tools.
Link design data directly to production software for smoother manufacturing.

Benefit	What It Does
Fewer mistakes	Real-time updates stop errors caused by old information.
Better teamwork	Teams share the newest files, improving cooperation.
Easier part reuse	Shared libraries prevent picking wrong parts and keep quality steady.
Clear tracking	Version control shows design history and helps find problems fast.
Faster production	Design data connects to manufacturing software, speeding up assembly.

Following industry rules like IPC-A-600 and IPC-A-610

Industry rules ensure your PCB assembly is high-quality and dependable. Standards like IPC-A-600 and IPC-A-610 explain how PCBs should look and work. Following these rules makes sure your designs meet strict quality levels.

Check your processes often to stay compliant. Teach your team about these standards to keep work consistent and avoid mistakes. Following these rules improves product reliability and builds trust with customers who depend on your PCBs for important industrial tasks.

Precision Assembly and Advanced Techniques

Using machines for accurate assembly

Machines make PCB assembly more precise. They do tasks like soldering and placing parts carefully. This lowers mistakes and keeps results consistent. Special cameras check the work for accuracy. For example, a 5MP camera system looks at edges and measures alignment to meet strict rules.

Process Check	What It Does
Camera Inspection	A 5MP system checks edges (0.05mm accuracy) and alignment to meet IPC-2221 standards.
Strength Testing	Tests bending strength and scoring shape using JEDEC MS-001 rules.
Laser Cutting	UV lasers cut tricky shapes with over 99% success for thin materials.

These machine-based methods help PCBs meet tough industry rules while keeping production efficient.

Why calibration and upkeep matter

Calibration makes sure tools measure things correctly. It compares tool readings to known values and adjusts them if needed. This reduces errors and matches industry rules.

Calibration checks and fixes tool accuracy.
It ensures tools give correct readings, which is key for good PCB assembly.
Comparing readings to standards helps find and fix mistakes.

Taking care of tools is just as important. Well-maintained tools make better products. Regular calibration lowers errors, improves quality, and meets industry rules.

Key Point	Why It’s Important
Correct Measurements	Help manufacturers make reliable, high-quality products.
Regular Calibration	Cuts down on errors and follows industry standards.

Smart methods for better assembly

Advanced methods make work faster and improve results. For example, UV lasers cut detailed shapes with great accuracy. This method works well for thin materials and tricky designs.

Benefit	What It Does
Easier Tool Setup	Standard designs need fewer special tools, saving time.
Fewer Mistakes	Designs made for easy building have fewer problems.
Faster Work	Good spacing between parts speeds up assembly.
Quick Testing	Smart designs make testing easier and faster.

Using these methods boosts PCB quality while saving time and money.

Inspection and Testing Processes

Automated Optical Inspection (AOI) for finding mistakes

Automated Optical Inspection (AOI) helps find problems in PCB assembly. It uses cameras and smart software to spot issues like bad soldering, misplaced parts, or missing components. This automated process works faster and more accurately than checking by hand.

AOI systems save money and time by reducing labor and inspection delays. They also cut waste by catching problems early. For example:

Machines replace manual checks, saving effort and costs.
Early problem detection stops bad boards from moving forward.
Instant feedback helps fix mistakes quickly, improving efficiency.

Switching from manual to automated checks has made finding errors easier. These systems fit well into production lines, offering constant monitoring and ensuring high-quality PCBs.

Inspection Type	Benefits	Challenges
Manual Visual Checks	Cheap and flexible but slow and less reliable.	Misses errors and takes more time.
Automated Systems	Cuts labor costs and finds more mistakes.	Needs upfront spending on equipment.
AI-Based Methods	Boosts accuracy and lowers running costs.	Needs good data for training.

X-ray inspection for hidden problems

X-ray inspection finds hidden problems in complex PCB designs. It can see through layers of the board to spot issues that cameras or the human eye can’t detect. This method works well for boards with many layers or tiny parts.

X-ray inspection can find:

Hidden solder joints that might cause connection problems.
Inner layer flaws that could stop the board from working.
Solder gaps that weaken the board’s strength.

This technique is great for checking BGA parts and multi-layer boards. Using X-rays ensures even tricky designs meet high standards. This step is key for making reliable PCBs for industrial automation, where quality is critical.

Testing how PCBs work and perform

Functional and performance tests check if PCBs work correctly in real-life situations. These tests look at electrical signals, overall performance, and how the board handles its job.

Modern methods like PCBA-YOLO have improved how defects are found. Using YOLOv5 technology, this approach reached 97.3% accuracy and detected problems at 322.6 frames per second. These tools show how advanced testing can catch assembly mistakes quickly.

Functional tests prevent costly problems by finding issues before products are shipped. This saves money, reduces waste, and improves production results.

Advantage	What It Does
Less Waste	Early error detection stops defective boards from being made.
Better Results	Fixing process issues improves production success rates.
Fewer Customer Problems	Careful checks lower the chance of faulty products reaching users.
Lower Costs	Fixing mistakes during production costs less than fixing them later.

Strong testing processes ensure PCBs meet the tough demands of industrial automation systems.

Environmental and Stress Testing

Testing in real-world conditions

Testing PCBs in real-life conditions ensures they work well. You can copy these conditions by testing for heat, stress, and moisture. For example, ther m al cycling heats and cools PCBs repeatedly. This test finds weak spots like cracked solder or worn-out materials.

To make PCBs last longer, test aging conditions too. Boards are aged at different temperatures (like 25 °C, 50 °C, and 75 °C) for months. These tests show how PCBs perform over time. Results help improve designs for better durability.

Parameter	What It Means
Thermal Cycling (TC) Profile	Tests from −40 °C to +125 °C with timed heating and cooling.
Aging Conditions	Boards tested at 25 °C, 50 °C, and 75 °C for months.
Input Factors	Includes time, temperature, solder, and PCB materials.
Target Variable	Measures solder joint life in cycles (120 minutes per cycle).

Testing for heat, shaking, and moisture

Heat, vibration, and moisture tests check if PCBs are strong. Thermal cycling makes sure solder stays solid in extreme heat. Vibration tests mimic shaking during use or transport. Humidity tests, like HAST, expose PCBs to heat and moisture to find hidden problems.

Test Type	What It Does
Vibration Test	Checks if PCBs survive shaking during use or transport.
Sinusoidal Vibration	Finds frequencies that increase stress on parts.
HAST Testing	Tests PCBs with high heat and moisture to find hidden flaws.
Temperature Cycling	Ensures solder joints stay strong in extreme heat changes.

Making PCBs tough for harsh conditions

Durability tests ensure PCBs survive tough environments. Test for heat, moisture, and shaking to copy real-life conditions. Use special tools to watch how PCBs handle stress. This data shows how PCBs wear out and helps predict their lifespan.

Pick stress factors like heat, moisture, and shaking.
Create controlled tests to copy real-world conditions.
Watch PCBs during tests to collect data.
Study the data to find weak points.
Use math models to predict how long PCBs will last.

These tests make sure PCBs are strong enough for industrial systems.

Continuous Improvement and Feedback Mechanisms

Using data to improve PCB quality

Looking at production data helps make PCBs better. By studying patterns, you can fix repeated problems. For example, the chi-square test finds common defects like solder bridges. This test compares expected and actual defect numbers. It helps you focus on solving specific issues.

One factory used this method to study soldering problems. They found many solder bridges and changed the solder paste and oven settings. These fixes made PCBs stronger and lowered repair costs. Tools like the Q-upSystem collect live data from production lines. They spot problems quickly, so you can fix them fast and keep quality steady.

Making processes faster and less wasteful

Lean manufacturing makes PCB assembly quicker and reduces waste. These methods improve both speed and quality. For example:

Lead times can shrink by 90%.
Inventory waiting to be used may drop by 80%.
Defects can go down by 50% or more.
Workers can be 15-30% more efficient.

Lean practices also save space, cutting factory size needs by 40%. Over time, productivity can grow by 25-30%. Using lean methods helps factories work better and keeps PCB quality high.

Checking work regularly to avoid mistakes

Regular checks keep PCB assembly quality consistent. Audits find problems early and stop expensive errors. Using checklists makes sure nothing is missed and keeps quality control organized.

Quality Check Practice	How It Helps
Regular audits	Finds design and production problems early
Standardized checklists	Prevents mistakes and ensures rules are followed

Checking machines and processes also controls costs and lowers errors. Listening to customer feedback during audits builds trust in your products. Follow i ng rules like IPC-A-610 and doing regular checks keeps standards high and improves efficiency.

Role of Trained Personnel and Collaboration

Why skilled technicians and engineers matter

Skilled technicians and engineers are key to making good PCBs. They know how to solder correctly, avoiding problems like cold joints or bridging. Their skills help with both machine checks and manual inspections. Machines like AOI and X-ray systems find hidden issues. Human inspectors spot small problems that need experience and judgment.

Tip: IPC solder training teaches the newest methods for strong solder joints.

Trained workers make sure every step follows industry rules. Their knowledge helps create durable PCBs for industrial automation.

Training programs keep skills sharp

Training programs help workers stay updated on new methods. These programs teach advanced soldering and inspection techniques. For example, IPC certification courses improve skills for handling tough tasks.

Workshops and hands-on sessions build problem-solving abilities. They prepare teams for new challenges and tools. Training boosts individual skills and overall quality.

Teamwork improves PCB assembly

Teamwork between groups is important for great PCB assembly. Sharing ideas helps everyone work toward the same goals. Design, production, and quality teams should talk often to spot problems early.

Note: Suppliers and manufacturers working together improve part tracking and quality.

Good teamwork encourages new ideas and fixes problems faster. When teams collaborate, they make better PCBs for industrial automation systems.

Making sure PCBs are high-quality for industrial automation needs careful planning. Important steps include checking designs, picking good materials, and building with precision. Testing thoroughly and keeping production consistent are also very important. The table below shows these key practices:

Area to Check	What to Focus On
Design Check	Find problems early and keep designs correct.
Material Choice	Use strong materials that follow industry rules.
Accurate Manufacturing	Place parts carefully and solder them correctly.
Detailed Testing	Test boards in real-life conditions to find flaws.
Batch Consistency	Keep quality steady across many production runs.
Following Rules	Meet standards like ISO and IPC for reliability.
Easy Integration	Make sure prototypes fit well into bigger systems.
Good Support	Provide clear help and stay in touch with service teams.

In 2025, using flexible designs, future-ready parts, and smart manufacturing will be key. These methods help systems work smoothly, avoid outdated parts, and grow easily.

The future of PCB quality depends on using data, better automation, and teamwork. By adopting these ideas, companies can meet new challenges while keeping products reliable and efficient.

FAQ

What is the key to good PCB quality?

Testing is the most important step. Check for problems, strength, and how it works in real-life situations. This makes sure the PCB meets rules and works well in automation systems.

How does using machines help in PCB assembly?

Machines make work more accurate and steady. They do jobs like soldering and checking for mistakes with great care. This cuts down on human errors, speeds up work, and keeps all PCBs the same quality.

Why is tracking parts important?

Tracking parts helps you know where they came from. It proves they are real and follow the rules. If something goes wrong, tracking helps you find and fix the problem fast.

How can you avoid mistakes when designing PCBs?

Use tools like Design Rule Checks (DRC) and Design for Manufacturability (DFM). These tools find problems early, making sure the design is correct and ready to build.

Why do rules matter in PCB assembly?

Rules like IPC-A-600 and IPC-A-610 give clear steps for quality and safety. Following these rules makes sure your PCBs are reliable and fit for use in automation systems.
