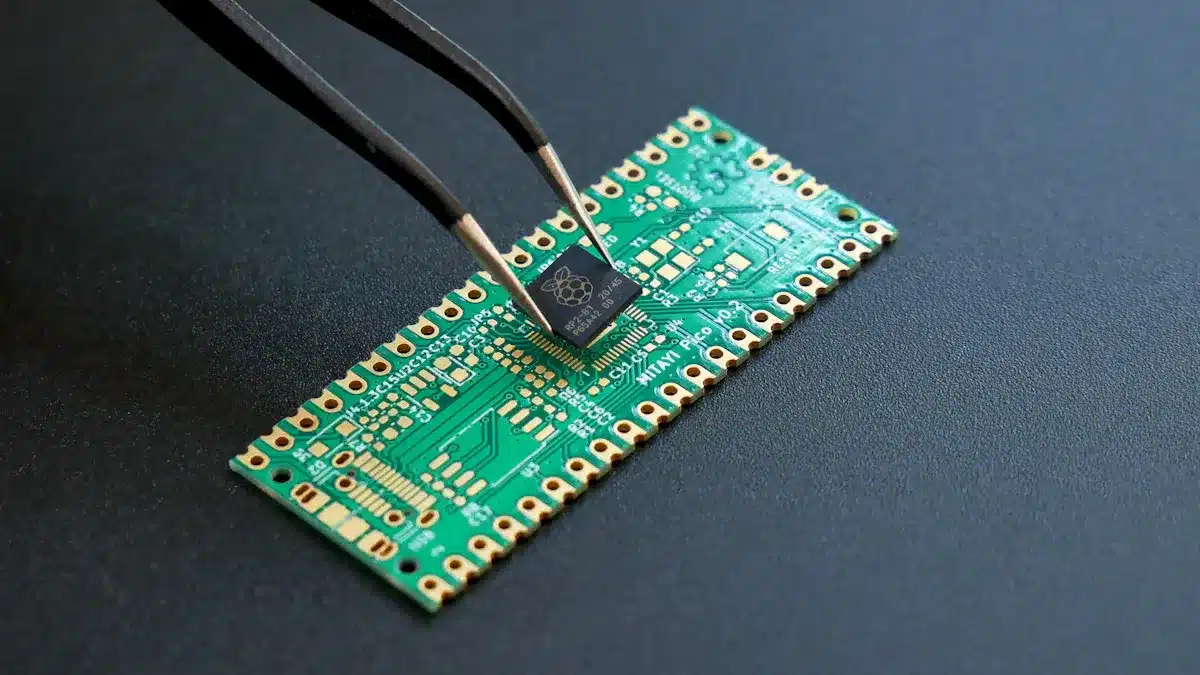

Printed circuit boards (PCBs) are the base for almost all electronic circuit boards. They are found in things we use every day and in special medical machines. Engineers use different main types of printed circuit boards. Each type is built in a special way and has its own job. The most common PCBs are single-sided, double-sided, multilayer, rigid, flexible, rigid-flex, and high-density interconnect designs. The table below shows how much each PCB type is used and their jobs in electronics:
PCB Type | Market Share / Revenue Share | Growth Trend / Notes |
|---|---|---|
Standard Multilayer PCBs | ~35% (2022) | Used in complex electronics, largest revenue contributor |
Rigid PCBs | Widely used in computing, telecom, automotive | |
Rigid-Flex PCBs | Fastest growing segment | Combines rigidity and flexibility, used in aerospace, medical |
Flexible PCBs | N/A | Increasing use in wearables and automotive |
HDI/Micro-via/Build-up PCBs | N/A | Supports miniaturization, high-density applications |
Choosing the right printed circuit board is important. You need to know how different PCBs, parts, and ways of putting them together affect how well they work. This helps engineers and designers pick the best circuit board or PCBA for each project.
Key Takeaways
There are many PCB types. These include single-sided, double-sided, multilayer, flexible, rigid-flex, and HDI. Each type has a special job in electronics.
Single-sided PCBs are easy to make and cheap. They work well for simple devices. Multilayer PCBs are used for hard and crowded circuits. They are needed for advanced technology.
Flexible and rigid-flex PCBs can bend and twist. They fit into small or odd spaces. This makes them great for wearables and medical tools. They are also good for things that move a lot.
Aluminum-backed PCBs handle heat very well. They help LED lights and strong electronics last longer.
Picking the best PCB depends on what your project needs. You must think about size, heat, speed, and strength. This helps your device work better and cost less.
Single-Sided Printed Circuit Boards
Definition
A single-sided printed circuit board is the simplest kind of pcb. It has one copper layer on one side of a base. The copper is shaped to make paths and spots for parts. All the parts go on the other side of the board. This board holds the parts and lets them connect. Makers often use glass fiber for the base. They cover it with copper foil before making the pattern.
Features
Single-sided pcbs are easy and cheap to make. They have just one copper layer, so all paths are on one side. There are no hidden or inside layers. The design is simple, and making them is fast and uses less stuff. Because there is only one layer, designers must plan well to keep paths from crossing. These boards do not have inside layers for better signals. This makes them not as good for fast signals or blocking signal noise. The table below shows how single-sided and multilayer pcbs are different:
Feature | Single-Sided PCB | Multilayer PCB |
|---|---|---|
Conductive Layers | One copper layer on one side | Multiple copper layers internally |
Complexity | Simple layout and manufacturing | Advanced, complex routing |
Interconnect Density | High density with multiple layers | |
Electrical Performance | Limited high-frequency and EMI shielding | Superior high-frequency and EMI shielding |
Cost | Lower cost | Higher cost |
Typical Applications | Basic electronics, toys, simple control boards | IoT, automotive, telecom, high-density designs |
Applications
Single-sided pcbs are used in many simple things at home and work. You can find them in calculators, remote controls, radios, and home gadgets. Car makers use them for dash lights, inside lights, and simple car controls. In factories, they are in power supplies, battery chargers, and wireless sensor devices. The table below lists where these boards are used:
Sector | Common Applications |
|---|---|
Consumer Electronics | Calculators, remote controls, radios, household appliances |
Industrial / Power Supplies | Power supplies, battery chargers |
LED Lighting | LED lighting systems |
Automotive | Dashboard indicators, interior lighting, control systems |
Industrial Wireless | RF devices for wireless sensor applications |
Tip: Single-sided pcbs are a good and cheap choice for easy electronic projects. Engineers pick them when the design is simple and does not need much space.

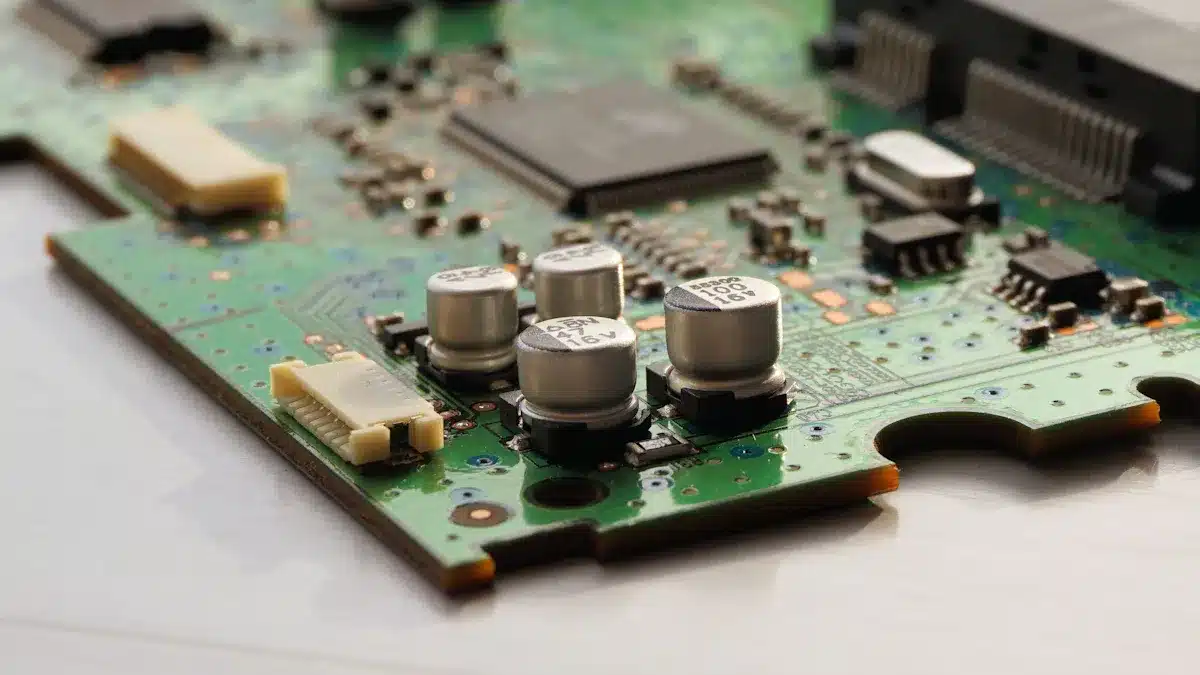

Double-Sided PCB
Definition
A double-sided pcb has copper on both the top and bottom. This lets engineers put copper pads and traces on each side. Plated through holes link the two copper layers together. These holes let signals move from one side to the other. Double-sided pcbs do not have any layers inside like multilayer pcbs. Designers can put parts on both sides of the board. This makes the board more complex and useful. The design allows for more parts and tighter layouts than single-sided pcbs.
Features
Double-sided pcbs give more space for wires and parts. Both sides can hold parts, so you can fit more on the board. Plated through holes, called vias, join the copper layers. These help engineers make small and strong pcba designs. Double-sided pcbs use both through-hole and surface mount ways to add parts. This gives more choices when building the board. They cost more to make than single-sided pcbs. But they offer more ways to connect parts and make the board work better.
Single-Sided PCB | Double-Sided PCB | |
|---|---|---|
Copper Layers | One side only | Both top and bottom sides |
Component Mounting | One side | Both sides |
Wiring Options | Limited | Expanded with vias |
Circuit Complexity | Simple | Complex, high-density |
Manufacturing Cost | Lower | Higher |
Typical Applications | Basic electronics | Industrial, automotive, consumer electronics |
Note: Double-sided pcbs let designers make more advanced pcba layouts. You do not need multilayer boards for these designs.
Applications
Double-sided pcbs are used in many modern electronics. Their small size and flexible design make them a good choice. Engineers use them in radios, amplifiers, and home appliances. Car makers use them for dashboards and control systems. Factories use them in machines, HVAC systems, and power supplies. Medical devices and LED lights also use double-sided pcba. These boards help companies build advanced products and keep costs fair.
Some common uses for double-sided pcbs are:
Consumer electronics like radios, amplifiers, and home appliances
Factory controls and machines
Medical devices
LED lighting systems
Power supplies and HVAC systems

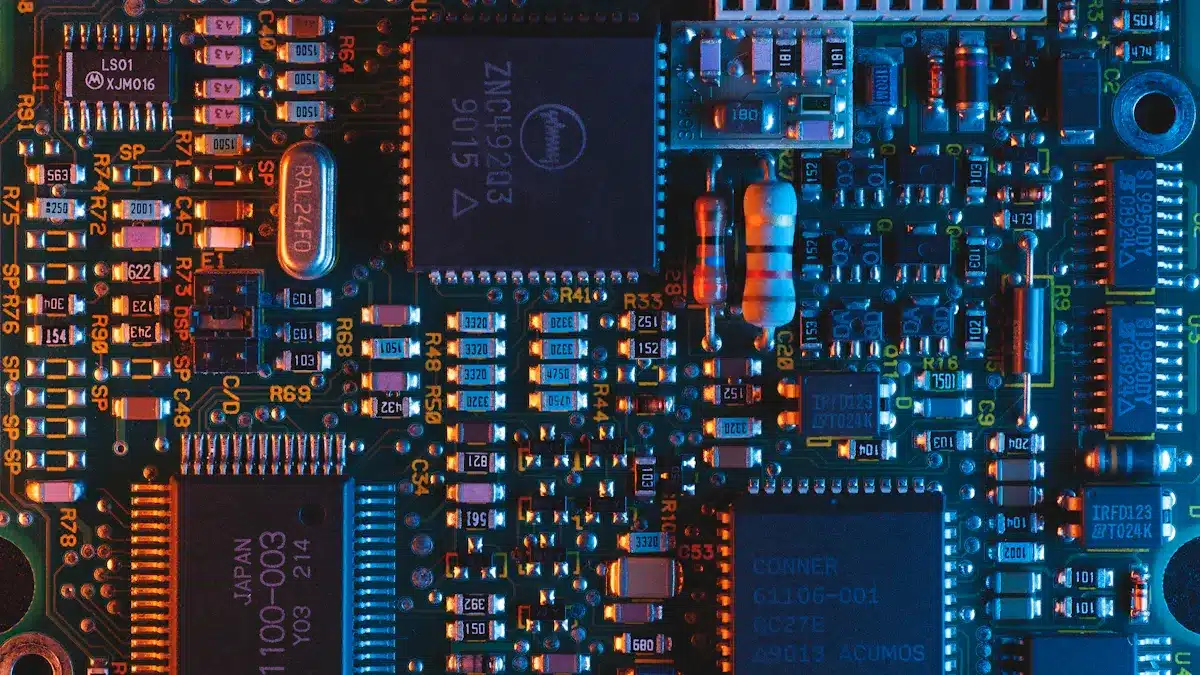

Multilayer Printed Circuit Boards
Definition
A multilayer pcb has more than two copper layers. Makers stack single- or double-sided boards with prepreg sheets and core materials like FR4. They use heat and pressure to bond the layers together. This makes the prepreg hard and forms a strong board. Each layer does a special job, like power, ground, or signal paths. Vias, such as blind and buried types, link the layers so circuits stay connected. This setup lets engineers build advanced and high-density circuits. It goes beyond what single- or double-sided boards can do.
Features
Multilayer pcbs have many features that help modern electronics.
They are small but hold many parts for tiny devices.
Good heat control helps them last longer and work well in hot places.
EMI shielding and close power or ground planes keep signals clear in fast circuits.
These boards allow tight connections and tricky paths for complex designs.
They are strong and work in tough places, like outside or in factories.
The design cuts down on interference and crosstalk, so pcba works well.
Feature | Explanation |
|---|---|
Multiple Layers | Lets engineers make complex and dense circuits |
Fits more parts in a small space | |
Improved Signal Integrity | Keeps signals strong in fast circuits |
Enhanced Power Distribution | Special layers give steady and safe power |
Thermal Management | Moves heat away for hard jobs |
Miniaturization | Makes small and light devices possible |
Note: Engineers pick multilayer pcbs for small size, strong boards, and advanced features.
Applications
Multilayer pcbs are used in many fields because they work well.
People use them in phones, smart gadgets, and wearables.
Computer makers use them in servers, motherboards, and storage devices.
Telecom companies put them in satellites, GPS, repeaters, and towers.
Medical tools like X-rays, heart monitors, and CAT scans need these boards for light weight and lots of features.
Military and defense use them for fast circuits and small designs.
Cars use them for electric systems, computers, GPS, and sensors.
Factories use them in control systems and machines.
Industry | Types of Products / Applications |
|---|---|
Phones, smart gadgets, wearables | |
Computers & Laptops | Servers, motherboards, storage devices |
Telecommunications | Satellites, GPS, repeaters, towers |
Medical Equipment | X-rays, heart monitors, CAT scans, test devices |
Military & Defense | Fast circuits, military gear, small designs |
Automotive | Electric cars, car computers, GPS, sensors |
Industrial | Control systems, machine controls |
Tip: Multilayer pcbs are the base for advanced pcba in all big tech areas. Their special build and features make them the best for hard jobs.
Rigid Electronic Circuit Board
Definition
A rigid electronic circuit board is called a rigid PCB. It uses a hard base that does not bend. This base is usually fiberglass mixed with FR4. The board is strong and keeps its shape. Makers put copper lines on the board to connect parts. These parts are soldered right onto the board. The board cannot bend or fold after it is made. This helps the board stay strong for a long time. The board has layers like the base, copper, solder mask, and silkscreen for labels. Rigid pcbs are used in most pcba for home and work electronics.
A rigid pcb has:
Fiberglass base (often FR4) for strength
Copper foil for the lines that carry electricity
Solder mask to protect and cover the board
Silkscreen for names and marks
Features
Rigid pcbs are strong and keep their shape well. The thick, hard board does not bend or twist, even if it gets hot or pushed. The flat shape and tough cover make them easy to use in pcba work. Rigid pcbs can carry more electricity because their paths stay straight. It is easier to find and fix problems than with flexible boards. Making rigid pcbs costs less than making flexible ones. That is why many pcba projects use them.
Feature | Rigid PCBs | Flexible PCBs |
|---|---|---|
Base Material | Rigid FR4 fiberglass | Flexible polyimide or polyester |
Flexibility | Cannot bend or fold | Can bend, fold, and stretch |
Mechanical Strength | High | Absorbs shocks and vibrations |
Heat Resistance | Good | Excellent |
Cost | Lower | Higher |
Application Suitability | Stable, high-density designs | Compact, dynamic flex applications |
Repair & Diagnosis | Easier | More complex |
Note: Rigid pcbs handle heat well and do not break easily. This makes them good for pcba that must last a long time.
Applications
Rigid pcbs are used in many types of pcba. In home electronics, they are the main board in computers, tablets, and phones. Cars use rigid pcbs for dashboards, engine controls, and sensors. Airplanes use them in flight gear and radios because they need strong boards. Big machines and robots use rigid pcbs to work in tough places. Home machines like washers and air conditioners use rigid pcbs to stop problems. Medical tools like MRI machines and network gear also use rigid pcbs for safe pcba.
Application Area | Examples / Details |
|---|---|
Automotive Electronics | Dashboard computers, engine control modules, sensors |
Aerospace Technology | Avionic equipment, sensors, communication devices |
Heavy Machinery | Industrial robots, 3D printers, factory automation |
Household Appliances | Washing machines, dishwashers, air conditioners |
Consumer Electronics | Computers, laptops, tablets, mobile phones |
Industrial Equipment | Automation systems, medical devices, networking equipment |
Tip: Rigid pcbs are best for pcba that need to be strong, last long, and not cost too much.
Flexible PCB
Definition
A flexible PCB is a printed circuit board that can bend and twist. It does not break when you move it. Engineers use special base materials like polyimide or liquid crystal polymer. These materials let the board stay flexible. There are rules for how flexible PCBs must work and stay safe. These rules are called UL 796F and IPC 6013. They say how much heat the board can take and how it should not catch fire. The rules also make sure the board keeps electricity inside. Flexible PCBs must pass tests for V-Rating, MOT, and CTI. These tests show the board works well in hard places.
Features
Flexible PCBs are special because they bend and fold. They fit into small and tight spaces. Makers use rolled annealed copper so the copper does not crack. This copper can bend many times without breaking. Adhesiveless laminates help the board stay strong and not peel apart. Engineers use smooth curves and staggered vias to spread out stress. This keeps the board from getting weak spots. Polyimide stiffeners and thick copper make some parts stronger. These are used near connectors where stress is high. Flexible solder masks cover the copper and let the board bend. The boards go through flex and twist tests to check if they last. Flexible PCBs are thin and light. They fit into small or odd-shaped devices. This makes them great for advanced pcba.
Feature | Description |
|---|---|
Base Material | Polyimide, LCP |
Copper Type | Rolled annealed for high ductility |
Durability | Adhesiveless laminates, reinforced stress points |
Design Strategies | Curved traces, staggered vias, teardrop pads |
Testing | Flex cycle, twist testing |
Protective Layer | Flexible solder mask (polyimide coverlay) |
Tip: Flexible PCBs help engineers make small, light, and strong pcba for things that move a lot.
Applications
Flexible PCBs are used in many new and smart devices. Medical wearables like glucose monitors and ECG patches use them. These boards fit close to the body. Fitness trackers and smartwatches need flexible PCBs for their slim and curved shapes. AR glasses use these boards to connect parts around the frame. Hearing aids and implantable medical devices use flexible PCBs because they are light and tiny. Machines like CT scanners and MRI machines use them for small and strong circuits. Devices that check vital signs use flexible PCBs for comfort and easy use. Rigid-flex PCBs mix rigid and flexible parts. This makes wearable pcba last longer and cost less to put together.
Some common uses for flexible PCBs are:
Medical wearables like glucose monitors and ECG patches
Fitness trackers and smartwatches
AR glasses and hearing aids
Implantable medical devices
Diagnostic and monitoring equipment
Note: Flexible PCBs let engineers make small, 3D, and smart pcba. They are very important for today’s electronics.
Rigid-Flex Printed Circuit Board
Definition
A rigid-flex printed circuit board mixes strong rigid pcbs with bendable flexible circuits. These boards are built in 3D shapes. Flexible layers go between the hard layers. All the layers connect with conductors and plated through holes. This lets signals move through both the stiff and bendy parts. The flexible parts can twist, fold, or roll to fit small spaces. Makers use materials like core, prepreg, copper foil, flexible laminates, coverlay, and bond plies. This design is lighter and takes up less space than regular rigid pcbs. Rigid-flex pcbs follow industry rules like IPC guidelines. They help make advanced pcba for many industries.
Features
Rigid-flex pcbs have many good points for electronic assemblies:
They save space by removing connectors and extra wires. The board can fold and bend to fit small devices.
Fewer connectors mean fewer things can break, so the system is stronger.
The board can handle stress, shaking, and heat changes.
Using fewer parts and less work saves money.
Designers can make 3D shapes and fit the board in special places.
The board can bend, fold, or twist and still work well.
It stands up to shocks and shaking, so it is good for tough jobs.
The board can hold more parts and weighs less.
It can bend many times without breaking.
Fewer connections make it easier to put together.
Tip: Rigid-flex pcbs make pcba more reliable and easier to test. The board only fits one way, so mistakes are less likely.
Feature | Explanation |
|---|---|
Mixes rigid and flexible circuits to save space and weight. | |
Higher Reliability | Fewer connections help the board resist shock and shaking. |
Durability | Hard parts keep it stable; bendy parts let it flex without breaking. |
Complex Geometries | Bendy parts let the board fit in tight spots. |
Cost Savings | Using less material and fewer parts saves money. |
Improved Signal Integrity | Bendy parts help fast signals and block signal noise. |
Ease of Testing and Installation | One board means fewer mistakes and faster testing. |
Applications
Rigid-flex pcbs are used in many products and fields. Home devices use them in irons, water purifiers, lights, solar systems, remotes, washing machines, phones, microwaves, wearables, and music players. Factories use them in control panels, big air conditioners, robots, test tools, and power systems. Phone and internet companies use them in CCTV, signal systems, wireless gear, satellites, handhelds, routers, and servers. Planes use them in test rooms, motion sensors, noise testers, control towers, radar, flight gear, radios, and GPS. Cars use them for maps, music, traction, entertainment, screens, comfort, and control modules. The military uses them for tracking, missile launchers, GPS, weapon control, and radios. Hospitals use them in wireless gear, imaging, drug pumps, hearing implants, patient monitors, and pacemakers.
Note: Rigid-flex pcbs are very important for advanced pcba in planes, the military, and hospitals. They make the board smaller and use fewer parts, which is great for hard designs.
High-Density Interconnect PCB
Definition
A high-density interconnect (HDI) pcb is a new kind of board for advanced electronics. Engineers made HDI pcbs because people want smaller and lighter devices with more features. These boards use microvia technology. Microvias are tiny holes, and there are also blind and buried vias. Makers use lasers to drill these small holes. This lets them put more connections in a small space. HDI pcbs have more wires in each area than regular boards. This helps make devices smaller and keeps signals clear. That is why these boards are good for small, fast devices.
Features
HDI pcbs have special features that make them different from normal multilayer boards. They let engineers draw thin lines and put parts close together. Microvias, blind, and buried vias help make tricky paths and fit more parts on the board. HDI pcbs can have many layers but still stay thin and light. These boards keep signals strong and send data faster because the paths are short and direct. Making HDI pcbs is harder and costs more because it needs laser drilling and filling the holes. But these boards give more choices for design and let engineers make detailed layouts for powerful devices.
Feature | HDI PCB | Standard Multilayer PCB |
|---|---|---|
High, supports fine lines and tight spaces | Moderate to low | |
Via Types | Microvias, blind/buried, laser-drilled | Through-hole, mechanically drilled |
Size & Weight | Smaller, lighter, more compact | Larger and heavier |
Electrical Performance | Superior signal integrity, reduced noise | Adequate for many uses |
Advanced, requires special equipment | Simpler, less expensive | |
Design Flexibility | Greater, supports intricate layouts | Limited by via size and spacing |
Tip: HDI pcbs help engineers make smaller, faster, and stronger devices for today’s world.
Applications
HDI pcbs are very important in many new electronics. Phones and tablets use these boards for fast chips, memory, and sensors in a small space. Home gadgets need HDI pcbs for things like wireless and clear screens. Phone and internet companies use HDI pcbs in base stations, routers, and switches to handle fast signals and quick data. Car makers use HDI pcbs for music, maps, safety, and self-driving systems. Medical tools, like monitors and tiny implants, use HDI pcbs because they are small and work well. These boards help make powerful devices in many areas.
Some common uses for HDI pcbs are:
Smartphones and tablets
Wearable technology
High-speed networking equipment
Advanced automotive electronics
Medical monitoring and implantable devices
Note: HDI pcbs help make the next wave of electronics by making devices smaller, lighter, and stronger.
Aluminum-Backed PCB
Definition
An aluminum-backed pcb is made to handle heat very well. It has three main layers. The top layer is thick copper foil. This layer carries more electric current. Under the copper is a special layer that moves heat away. The bottom layer is an aluminum alloy. This alloy is a mix of aluminum, magnesium, and silumin. It makes the pcb strong and helps it lose heat fast. Some boards have a cover to protect the aluminum from scratches and chemicals. The middle layer has ceramic polymers. These keep electricity inside and help move heat. This design lets the pcb handle more power and heat than fiberglass boards.
Features
Aluminum-backed pcbs have many good features for high-power and LED jobs:
The aluminum base works like a heat sink. It pulls heat away from important parts fast.
The layer between aluminum and copper helps heat move and keeps the circuit safe.
These pcbs let you use more LEDs and higher power without getting too hot.
They do not bend or break easily, even if shaken or hit.
The aluminum base is light, so the whole device weighs less.
Aluminum is cheap and easy to recycle, so it saves money.
You often do not need extra heat sinks or fans, so the device is smaller and easier to build.
Tip: Aluminum-backed pcbs stop heat damage, help LEDs last longer, and save energy in lights.
Applications
Engineers use aluminum-backed pcbs in many strong and bright devices. These boards are in LED lights for streets, traffic signals, and homes. Cars use them for headlights and dashboard lights. Power supplies, like converters and regulators, use these boards to control heat. Audio and communication devices use them to stay cool. Power electronics use them in things like solid-state relays and power rectifiers. These boards can handle lots of power and heat, so they are great for hard jobs in electronics.
Types of Printed Circuit Board Materials
Material Options
Engineers pick from different printed circuit board materials when they design a pcb. Each material has special traits that change how the board works. The most used materials are FR4, polyimide, PTFE, metal core, and high-speed laminates like Rogers 4350B. These materials make up the base of the pcb and decide how strong, bendy, or good with electricity it is.
Material Type | Typical Properties |
|---|---|
FR4 (Rigid) | Flame-retardant fiberglass epoxy resin; Tg up to ~180°C; CTE ~14-18 ppm/°C; Dielectric constant ~4.5 @1GHz; Cost-effective and mechanically strong |
Polyimide (Flexible) | Polymer-based; High thermal performance; Flexible and bendable; Used in aerospace and automotive; Dielectric constant ~3.3-3.6 @1MHz; Tg varies up to 350°C |
PTFE (Teflon) | Plastic material; High flexibility; Low dielectric constant (lower than FR4); Suitable for high-frequency applications; Thin and lightweight |
Metal Core | Substrate made of metals like copper or aluminum; Provides good mechanical strength; Better thermal profile; Lightweight compared to traditional substrates |
Rogers 4350B (High-Speed) | High Tg (~280°C); CTE ~32 ppm/°C; Dielectric constant ~3.5 @10GHz; Used for high-frequency, high-speed circuits |
Other important materials are copper layers for carrying electricity, prepreg for sticking layers, solder mask for protection, and different finishes on the surface. The choices depend on what the pcb needs, how much it costs, and where it will be used.
Tip: Picking the right printed circuit board materials can make the board last longer and cost less.
Impact on Performance
The type of circuit board material changes how well a pcb works and how long it lasts. FR4 gives good insulation and is strong, so people use it a lot. Polyimide and other flexible bases let the pcb bend without breaking, which is good for wearables and car electronics. PTFE and high-speed laminates like Rogers 4003c have low dielectric loss, so signals stay clear in fast circuits.
Heat and wet air can change how a pcb works. High heat makes copper traces resist more, which can cause signal loss. Humidity can make electricity go where it should not, causing short circuits. To fix these problems, engineers use materials that move heat away and add coatings for protection. Metal core and ceramic bases help take heat away from important parts, so the board works better and lasts longer.
PCB Material Type | Durability & Mechanical Properties | Thermal Properties & Impact on Durability and Performance | |
|---|---|---|---|
FR4 | Good electrical insulation; prevents short circuits and signal interference | High mechanical strength; cost-effective and reliable for general use | Moderate thermal conductivity; suitable for standard temperature ranges |
Insulated Metal Substrate (IMS) | Excellent heat dissipation; improves signal stability | Durable for high-power applications; metal core adds robustness | High thermal conductivity; reduces overheating, enhancing reliability |
Ceramic Substrates | High insulation with low dielectric loss; ideal for high-frequency signals | High toughness; resists mechanical shocks | Very high thermal conductivity; maintains performance under extreme heat |
Flexible Substrates | Maintains electrical integrity while bending | Lightweight and flexible; resists damage from bending | Moderate thermal conductivity; designed for compact, dynamic applications |
High-Frequency Materials | Low dielectric loss; stable dielectric constant | Mechanically stable for RF applications | Optimized for high-frequency operation; ensures signal integrity |
Choosing the right printed circuit board materials helps the board work well in all kinds of places. This careful choice makes sure the board is strong and works for a long time.
PCB Comparison Table
When picking a pcb for a project, you need to know how each type is different. The table below shows what makes each pcb special. It lists their features, what they are made of, and where they are used. This helps engineers and designers choose the best pcb for their work.
PCB Type | Features | Circuit Board Materials | Typical Applications |
|---|---|---|---|
Single-sided | Simple circuits, low cost | FR-4 | Basic remote controls, simple electronics |
Double-sided | Moderate complexity, moderate cost | FR-4 | Automotive sensors, consumer electronics |
Multilayer | High complexity, high density | FR-4, polyimide | Smartphones, advanced computing devices |
Flexible | Lightweight, fits curved spaces | Polyimide, polyester | Wearable devices, fitness trackers |
Rigid-flex | Combines rigidity and flexibility | FR-4 + polyimide | Medical implants, aerospace applications |
Rigid Aluminum | Excellent heat dissipation | Aluminum substrate | LED lighting, high-heat environments |
HDI | High wiring density, miniaturization | FR-4, high-speed laminates | Smartphones, tablets, high-speed devices |
Tip: Engineers pick flexible or rigid-flex pcbs for things that must bend or fit in small places. Rigid aluminum pcbs are best for lights that get hot and need to stay cool.
Printed circuit boards use different materials for different jobs. FR-4 is used for most regular pcba. Polyimide is used when the board needs to bend. Aluminum is used to help with heat in LED pcba. Each pcb type needs its own way to be made. When designing, engineers think about where the device will go, how big it is, and what it does. The teams that build the boards then pick the right materials and steps to make sure the pcba works well.
Note: Looking at pcb types side by side helps teams find the best one for each project. This makes the boards work better and keeps costs down when making them.
Choosing the Right PCB
Application Needs
Engineers need to know what each project needs before picking a circuit board. Every device has its own size, shape, and place it will be used. Wearable devices need flexible pcbs. These fit in small spots and can bend when people move. Big machines in factories need rigid pcbs. These boards do not bend and can handle heat and shaking. Medical devices often use rigid-flex pcbs. These boards are strong but can also bend, which helps them last longer.
What the project needs decides which pcb design is best. Fast computers and telecom gear use multilayer pcbs. These boards keep signals clear and fit lots of parts close together. LED lights use aluminum-backed pcbs. These boards help get rid of heat. Cars use double-sided or multilayer pcbs. These boards help run sensors and control systems. Picking the right pcb type for each job makes sure the device works well.
Tip: Engineers should write down all project needs, like size, power, speed, and where it will be used, before starting pcb design.
Key Factors
Picking the best pcb means thinking about many things. Engineers look at how the board handles heat, keeps signals clear, costs, and if it works with how things are made. The right pcb material helps the board work well and last longer.
1. Thermal Management: Good cooling stops parts from breaking. Metal-core or aluminum-backed pcbs help cool down high-power boards. 2. Signal Integrity: Some pcb materials keep signals clear, which is important for fast circuits. 3. Cost: Fancy materials like ceramic and Rogers work better but cost more. FR-4 is used a lot because it is cheap and works well. 4. Manufacturing Process Compatibility: The pcb must work with drilling, soldering, and putting parts on. This helps stop mistakes and saves time. 5. Environmental Concerns: Using safe materials and following rules like RoHS and IPC helps protect the planet.
Picking parts also changes pcb design. Engineers check if resistors, capacitors, diodes, transistors, ICs, and connectors will work together. They look at resistance, voltage, speed, and shape. They test the board with heat and cold to make sure it is safe and strong.
Component | Key Selection Factors |
|---|---|
Resistors | Resistance value, tolerance, power rating, material type |
Capacitors | Capacitance value, voltage rating, temperature coefficient, dielectric material |
Diodes | Forward voltage drop, reverse voltage rating, switching speed, application type |
Transistors | Type, voltage/current ratings, switching speed, thermal management |
Integrated Circuits (ICs) | Functionality, operating voltage, package type, availability |
Connectors | Type, pin count, durability, size |
Note: Engineers must think about signal noise, heat, and power to stop problems in printed circuit board assembly.
Selection Tips
Picking the right circuit board takes careful steps. Engineers do these things to match the pcb to the project:
Check what the device needs for size, bending, and where it will be used.
Pick pcb materials that work well, last long, and do not cost too much.
Choose board features that help with signals and heat.
Make sure the board works with how it will be made and tested.
Test all parts and materials to make sure they are safe and strong.
Engineers use a checklist to help pick the right pcb for pcba:
What is the highest and lowest temperature it will see?
Does the board need to bend or stay flat?
How much power will go through the board?
Is there a limit on size or weight?
How fast do signals need to move and stay clear?
What ways will be used to make the board?
🛠️ Pro Tip: Engineers should talk to the people who build the boards early. Working together helps stop mistakes and makes sure the board is right.
Planning ahead and checking details helps engineers pick the best pcb for printed circuit board assembly. The right choice makes the board work better, cost less, and fit real-world needs.
Printed circuit boards have many kinds. Each kind is made for a special use. Single-sided boards are good for easy devices. Multilayer and HDI boards help with high-tech electronics. Flexible and rigid-flex boards are used in wearables and medical tools. Aluminum-backed boards are used in lights because they handle heat well. Engineers need to think about the material, how hard the design is, and where the board will go.
Pick the PCB that fits what the project needs.
Think about where it will be used and how well it must work.
Choosing wisely makes products work well and saves money.
FAQ
What is the main difference between rigid and flexible PCBs?
Rigid PCBs have a hard base that cannot bend. Flexible PCBs use special materials so they can bend and twist. Engineers pick flexible PCBs for things that need to fit in small or moving spaces.
When should engineers use a multilayer PCB?
Engineers use multilayer PCBs for devices with lots of connections. These boards are best for smartphones, computers, and medical tools.
Why do some LED lights use aluminum-backed PCBs?
Aluminum-backed PCBs help take heat away from LEDs. This keeps the lights cool and helps them last longer. Aluminum also makes the board strong and light.
How do engineers choose the right PCB material?
Engineers think about what the device needs, like heat, size, and speed. They pick FR4 for strength, polyimide for bending, or aluminum for heat. The right material helps the board work better and last longer.
Can one PCB type work for every project?
No single PCB type works for every project. Each type is good for certain jobs. Engineers pick the PCB that matches what the device needs, like bending, heat, or fast signals.
See Also
A Clear Overview Of PCBA And Its Electronic Uses
Main PCBA Parts And Their Important Roles Explained
How To Select The Best PCBA Main Board Effectively
Comparing PCBA And PCB: Key Structural And Functional Differences
