Main Parts of a Circuit Board and What They Do

You will see many key parts on every circuit board. These parts are resistors, capacitors, inductors, diodes, transistors, integrated circuits, transformers, relays, potentiometers, SCRs, connectors, switches, and power sources. Each part has its own job, like controlling current or storing energy. If you know about pcb components, you can find problems on a printed circuit board. For example, you might see a burnt resistor or a bulging capacitor when you look closely. Knowing the parts of a circuit board helps you use tools like a multimeter and compare good pcb boards to broken ones. This knowledge makes it easier to fix and test circuit board parts. It also helps your devices last longer.

Key Takeaways

Circuit boards have many parts like resistors, capacitors, and transistors. Each part has a special job to control electricity. These parts help devices work the right way.
You can spot parts by looking at their shapes, labels, and designators. This helps you find and fix problems on a circuit board. It also keeps you safe and helps you do it right.
Passive parts like resistors and capacitors control current and store energy. Active parts like transistors and ICs switch signals and make them stronger.
Circuit boards connect all parts with copper traces. This lets electricity flow so devices work well. It also means devices can be fixed or upgraded.
Learning about circuit board parts makes testing and fixing electronics easier. It helps you understand how things work. Your devices can last longer and work better.

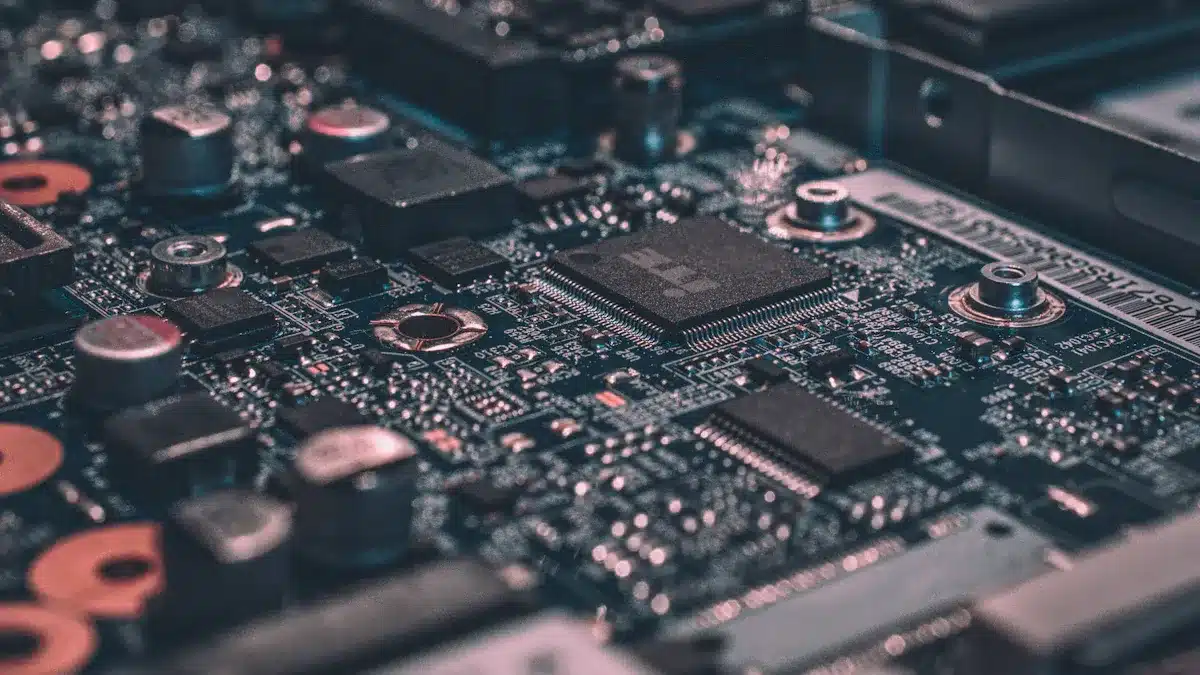

What Is a Circuit Board?

PCB Basics

You can find a circuit board in almost every electronic device. A printed circuit board, or PCB, is a flat board. It holds and connects all the circuit board components. The electronics industry says a printed circuit board has layers. These layers have copper traces and insulating materials. Copper traces work like tiny roads. They carry electricity between different pcb components. Circuit board components are soldered onto pads on the outside layers. In multilayer PCBs, there are metal-lined holes called vias. Vias let electricity move between layers.

There are different types of PCB materials. The most common one is called FR-4. It is strong and keeps water out. It also stops electricity from leaking. Some boards use special materials for certain jobs. Here is a table that shows the main materials you might see in a circuit board:

PCB Material	Key Properties	Relative Cost	Typical Applications
FR-4	High mechanical strength, good electrical insulation, temperature stability	Low	General purpose PCBs, widely used in consumer and industrial electronics
Rogers	Excellent electrical performance, low dielectric constant, thermal stability	High	High-frequency, microwave, and high-performance PCBs
Metal-Core	Improved thermal management, mechanical stability, reduced weight	Low	High-power applications like LED lighting, motor control, power circuits
Polyimide	Flexible, chemical resistant, high temperature tolerance, lightweight	Mid/High	Flexible and rigid-flex PCBs

You will often see pcb components like resistors, capacitors, and transistors. Each part does a special job. Together, they help the device work.

Why Circuit Boards Matter

Circuit boards are very important in modern electronics. You use them every day in things like phones and computers. Even washing machines have them. Circuit board components give a safe place to mount and connect all the parts. This setup lets electricity go where it needs to. That way, your device works right.

Circuit boards help make devices smaller and stronger. Manufacturers use PCBs to fit many circuit board components in a small space. This makes it easy to carry powerful gadgets with you. Circuit boards also let you change or upgrade parts. This helps with repairs and adding new features.

Tip: If you open a device, look for a green or blue board with tiny parts. That is the circuit board. Every component on it has a job.

Modern pcb technology is used in medical devices and big machines. Without circuit boards, you would not have fast and reliable electronics. Knowing how pcb components work together helps you see why circuit board components matter in every device.

Main Parts of a Circuit Board

Every pcb has two main types of parts. Mechanical components give support and shape to the board. Electrical components control how electricity moves. Electrical parts can be passive or active. Passive parts, like resistors, capacitors, and inductors, do not need outside power. Active parts, such as transistors and integrated circuits, need power to work. They can also boost or switch signals. Knowing these groups helps you see how each part works together on a pcb.

Resistors

Resistors are very common on circuit boards. They slow down or control electric current. This keeps other parts safe and the circuit steady. You can spot resistors by their small size and colored bands or numbers. On a pcb, resistors have an “R” and a number, like R1 or R10. This label helps you find and check each resistor.

Designator	Component Type
R	Resistor
RN	Resistor Network
RV	Varistor, Variable Resistor

Tip: Use Ohm’s Law (V = I × R) to figure out current in a resistor.

Resistors help split voltage, set up bias points, and protect other parts from too much current.

Capacitors

Capacitors are important for storing and releasing energy. They help smooth voltage, filter noise, and keep power steady. On a pcb, capacitors look like small cylinders, disks, or blocks. They are marked with a “C” and a number, like C1 or C5. There are many kinds, such as ceramic, electrolytic, tantalum, film, and supercapacitors. Each type does a special job, like filtering or passing signals.

Capacitors store charge and control voltage.
Decoupling capacitors give quick current to chips.
Bypass capacitors remove high-frequency noise.
Filtering capacitors make DC power smooth.

Capacitor Type	Material	Capacitance Range	Voltage Ratings	Typical Applications
Ceramic Capacitors	Ceramic dielectric (MLCC)	Few pF to µF	Wide range	High-frequency circuits, bypassing, decoupling
Electrolytic Capacitors	Aluminum or tantalum with electrolyte	1 µF to several thousand µF	Medium to high	Bulk energy storage, filtering in power supplies
Tantalum Capacitors	Tantalum metal with conductive oxide	Medium to high capacitance	Typically lower than aluminum electrolytics	Decoupling, filtering, stable capacitance
Film Capacitors	Plastic film	Few nF to several µF	High voltage	Audio circuits, signal coupling, filtering
Supercapacitors	Electrochemical double-layer	Farads (F)	Typically low voltage	Energy storage, quick charge/discharge cycles

Capacitors keep your circuit board working well and protect sensitive chips.

Inductors

Inductors are passive parts that store energy in a magnetic field. They do this when current flows through them. Inductors block high-frequency signals and filter out noise. They also help tune radios. On a pcb, inductors look like wire coils or small blocks with windings. They are marked with an “L” and a number, like L1 or L2.

Identification Method	Description	Examples
Text Codes	Three-digit code or ‘R’ as decimal	‘472’, ‘4R7’, ‘472J’
Color Codes	Colored bands like resistors	Yellow, Violet, Black, Silver

Inductors help keep current steady, store energy, and work with capacitors to pick certain frequencies. You see them in power circuits, filters, and radios.

Diodes

Diodes are important because they let current go only one way. You use diodes to change power, get signals, and protect circuits from spikes. On a pcb, diodes look like small cylinders with a stripe or tiny black chips. They are marked with a “D” or “CR” and a number, like D1 or D5.

Diodes control which way current flows.
They turn AC into DC in power supplies.
Zener diodes control voltage, and Schottky diodes switch fast.
LEDs give off light as a signal.

Diodes keep your circuit board safe and make sure electricity goes the right way.

Transistors

Transistors are active parts that act as switches or amplifiers. You use them to control signals, turn things on and off, and make weak signals stronger. On a pcb, transistors look like small black cylinders with three legs or flat chips. They are marked with a “Q” or “T” and a number, like Q1 or Q3.

Transistor Type	Function	Typical Applications
Bipolar Junction Transistor (BJT)	Controls larger current via small base current	Signal and audio amplifiers
Field Effect Transistor (FET)	Voltage at gate controls current flow	Switching circuits, current regulation
MOSFET	High input impedance, low power consumption	Computer circuits, audio amplifiers

Transistors are key for digital logic, memory, and power control. They help your circuit board process and control information.

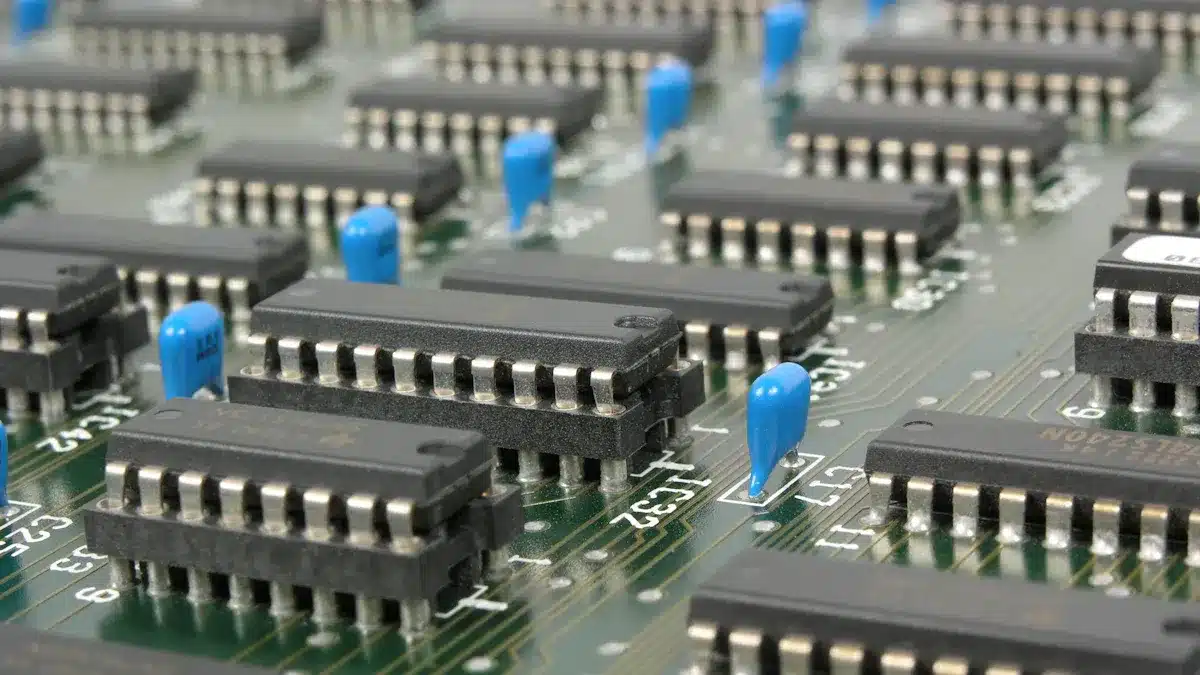

Integrated Circuits

Integrated circuits, or ICs, are chips with many parts inside. They have lots of transistors, resistors, and capacitors in one chip. You use ICs for things like data processing, signal boosting, and power control. On a pcb, ICs are black rectangles with many pins. They are marked with a “U” or “IC” and a number, like U1 or IC2.

Note: You can often see the maker’s logo or part number on the chip.

ICs do many jobs, from simple timers to powerful computers. They make electronics small and powerful.

Transformers

Transformers are special parts that change voltage and keep circuits safe. You use transformers to raise or lower voltage, match impedance, and protect circuits. On a pcb, transformers look like blocks or coils with wires. They are marked with a “T” or “TR” and a number, like T1 or TR2.

Transformers keep dangerous voltages away from sensitive parts.
They help measure current and stop too much current.
You find them in power supplies, chargers, and audio circuits.

Transformers are needed for safe and good power transfer on your pcb.

Relays

Relays are switches that use electricity to open or close circuits. You use relays to control big circuits with small signals. On a pcb, relays look like small boxes with pins. They are marked with a “K” or “RY” and a number, like K1 or RY2.

Aspect	Explanation
Working Principle	Energizing a coil moves contacts to open or close circuits.
Applications	Used in automotive, industrial, power systems, and home automation.

Relays give safety and isolation, so they are important for controlling large loads.

Potentiometers

Potentiometers are adjustable resistors. They let you change voltage or current. You use them to set volume, brightness, or calibration. On a pcb, potentiometers look like knobs or sliders. They are marked with “VR” or “P” and a number, like VR1 or P2.

Aspect	Explanation
Basic Function	Adjustable voltage divider or variable resistor.
Common Uses	Volume control, calibration, position sensing.
Types	Rotary, linear, trimmer, digital.

Potentiometers help you adjust your circuit board for the best results.

SCRs

Silicon-controlled rectifiers, or SCRs, are special switches for high power. You use SCRs for motor speed, light dimming, and power control. On a pcb, SCRs look like blocks with three or four legs. They are marked with “SCR” or “Q” and a number, like SCR1 or Q5.

SCRs handle high voltage and current.
They are used in power switching and protection.
SCRs help control energy in many systems.

SCRs are important for safe and strong power control in electronics.

Connectors

Connectors are mechanical parts that join pcbs, wires, or devices. You use connectors to link power, signals, or data. On a pcb, connectors come as pin headers, sockets, or edge connectors. They are marked with “J” or “CN” and a number, like J1 or CN3.

Board-to-board connectors join two pcbs.
Wire-to-board connectors attach wires to the pcb.
Card edge connectors let you plug a board into a slot.
Coaxial and RF connectors carry high-frequency signals.
USB and power connectors give data and power.

Connectors make it easy to build, fix, and upgrade your circuit board.

Switches

Switches are simple parts that open or close circuits. You use switches to turn things on or off, pick modes, or send signals. On a pcb, switches can be buttons, sliders, toggles, or rotary types. They are marked with “S” or “SW” and a number, like S1 or SW2.

A switch acts like a gate for electricity. When you press or flip it, you let current flow. When you let go, you stop the current. Switches are needed for user control and safety.

Power Sources

Power sources give energy to your pcb parts. Most electronics use power supplies that change AC from the wall to DC for the board. You will see transformers, rectifiers, and filters working together to give the right voltage and current.

Power supplies change AC to DC.
Transformers lower the voltage.
Rectifiers turn AC into DC.
Filters make the DC smooth.
Power can come from inside the board or from outside.

Power sources start everything for your circuit board, making sure each part gets the energy it needs.

Remember: Knowing the main parts of a circuit board helps you fix, test, and understand your devices.

Identifying PCB Components

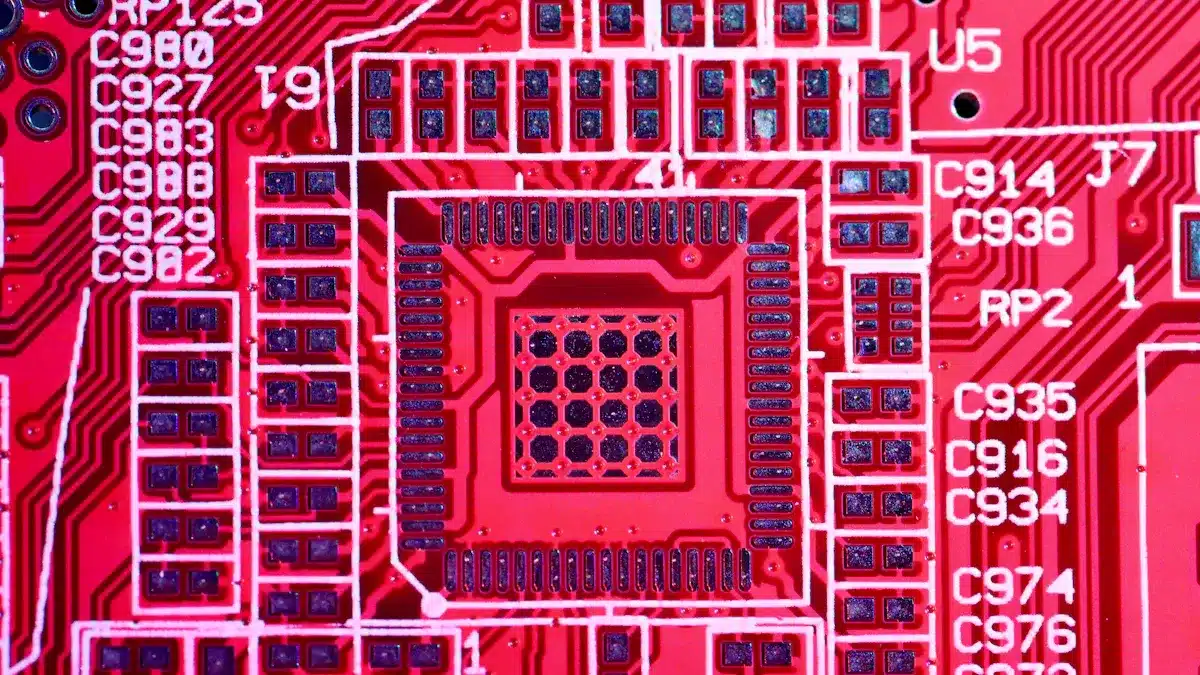

Reference Designators

When you look at a pcb, you will see small letters and numbers next to each part. These are called reference designators. They help you find circuit board components fast. Each type of component uses its own letter. For example, “R” is for resistors, “C” is for capacitors, and “Q” is for transistors. You can use these designators to match parts with a schematic or a list.

Here is a table that shows common reference designators and what they mean:

Reference Designator	Component Type
R	Resistor
C	Capacitor
Q	Transistor
U	Integrated Circuit
D	Diode
L	Inductor
J	Connector
F	Fuse
TP	Test Point
LED	Light Emitting Diode
FB	Ferrite Bead
K	Relay
M	Motor
T	Transformer
P	Plug
S	Switch

You will see these designators printed on the pcb next to the parts. This makes it easier to check or change the right part when you fix something.

Tip: Always look at the reference designator before you remove or test any part. This helps you not make mistakes.

Visual Clues

You can also use how things look to find circuit board components. Each part has its own shape, color, and marks. For example, resistors are small cylinders with colored stripes. Capacitors can be discs or cylinders and have numbers for their value. Diodes have a stripe to show which way current goes. Integrated circuits are black rectangles with lots of pins.

Here is a table to help you spot different circuit board components:

Component Type	Visual Clues and Identification Features
Resistors	Small cylinder, colored bands show value and tolerance.
Capacitors	Disc or cylinder shape, labeled with value and voltage, some have polarity marks.
Diodes	Stripe on one end, small cylinder or rectangle, LEDs look like tiny bulbs.
Transistors	Black body, three pins in a line or triangle, marked with part number.
Integrated Circuits	Black rectangle, many pins, labeled with manufacturer and specs.
Connectors	Rows of metal pins, sockets, or larger plugs for power and data.

You can use a magnifying glass to read small marks on parts. Sometimes, you need to check a datasheet or use a multimeter to know what a part is. When you practice finding circuit board components, you get better at spotting each one by sight.

Remember: The more you look at different pcb boards, the easier it is to know all the parts and see how they work together.

How PCB Components Work Together

Circuit Flow

When you look at a circuit board, you see many parts working as a team. The copper traces are like tiny roads on the board. These roads connect all the parts and let electricity move around. The power source gives energy to the board. This energy travels through the copper traces. Passive components, like resistors, capacitors, and inductors, help control this energy. They filter signals, store energy, and keep the current steady.

Active components, such as transistors, diodes, and integrated circuits, use these signals to do important jobs. They can turn signals on or off, make them stronger, or change them. Electromechanical components, like switches, relays, and connectors, let you use the device. You can turn it on, change how it works, or connect it to other things. Each part has its own job and path, so the circuit works the right way.

Tip: Try following the copper traces with your eyes. You will see how the parts connect and work together to make the device run.

Component Roles

Every type of part on a circuit board has a special job. You can see what each one does in the table below:

Component	Typical Role in Circuit Flow	Description Summary
Resistor	Controls current flow	Limits current, divides voltage, protects other components
Capacitor	Stores and releases electrical energy	Smooths voltage, filters signals, helps with timing
Inductor	Stores energy in a magnetic field	Blocks sudden changes in current, used in filters and tuning
Diode	Allows current to flow in one direction only	Acts as a one-way valve, used for rectification and protection
Transistor	Acts as amplifier or switch	Controls current, amplifies signals, switches parts of the circuit

All the circuit board components must work together in the right way. For example, a microcontroller uses capacitors to keep its clock signal steady. It might use a transistor to turn a relay on or off. The relay can then control a motor or a light. Connectors link the board to other devices, letting signals and power move in and out. Each part is picked for its job, and together, they help the device do what you want.

When you learn about the main parts on a circuit board, you get a big benefit. Every time you see things like resistors, capacitors, or transistors, you start to see how your device works. If you know what these parts do, you can fix problems and make new things. You will also make fewer mistakes. Many repair experts can fix hard problems because they know how to test and change broken parts. You can use a multimeter to check parts and find problems like too much heat or short circuits. When you open real devices, try to find each part. This skill helps you feel sure of yourself and makes electronics more fun.

Parts can break from heat, too much voltage, or by being handled wrong.
You must know the parts to use tools and fix boards.
Finding broken parts stops you from making expensive mistakes.

Keep looking and learning! The more you practice, the easier it is to spot parts and know what they do.

FAQ

What are the most common circuit board components you will see?

You will usually find resistors, capacitors, diodes, transistors, and integrated circuits. These parts help control electricity, store energy, and handle signals. Knowing these circuit board components helps you see how your device works.

How do you identify different pcb components on a printed circuit board?

Look at the shapes, colors, and labels on each part. Every electronic component looks a little different. Reference designators like R for resistors or C for capacitors help you know what each part is. You can use a magnifying glass to see tiny parts better.

Why do you need essential pcb components on every circuit board?

Essential pcb components make sure your device is safe and works right. Each part, like a resistor or capacitor, does something important. Without these circuit board parts, your printed circuit board would not work as it should.

Can you replace damaged circuit board parts yourself?

You can change some circuit board components if you have the right tools and know-how. Always check the type and value of the electronic component before you swap it. Try practicing on old pcbs first so you can get better at it.
