Top 10 Parts of a PCB and Their Functions

Printed Circuit Boards (PCBs) are very important in today’s electronics. They act like the main support for electronic devices. They connect different parts and help them work properly. Knowing the parts of a PCB helps you understand how devices function. The move to smaller PCBs leads to better designs. This makes devices stronger and more dependable while saving space.

Key Takeaways

Learning about PCB parts, like resistors and capacitors, helps you understand how electronic devices work.
Each part, like diodes and transistors, is important for controlling current and making sure everything works well.
Being able to find and fix common problems in PCB parts can improve your skills in keeping and repairing electronic devices.

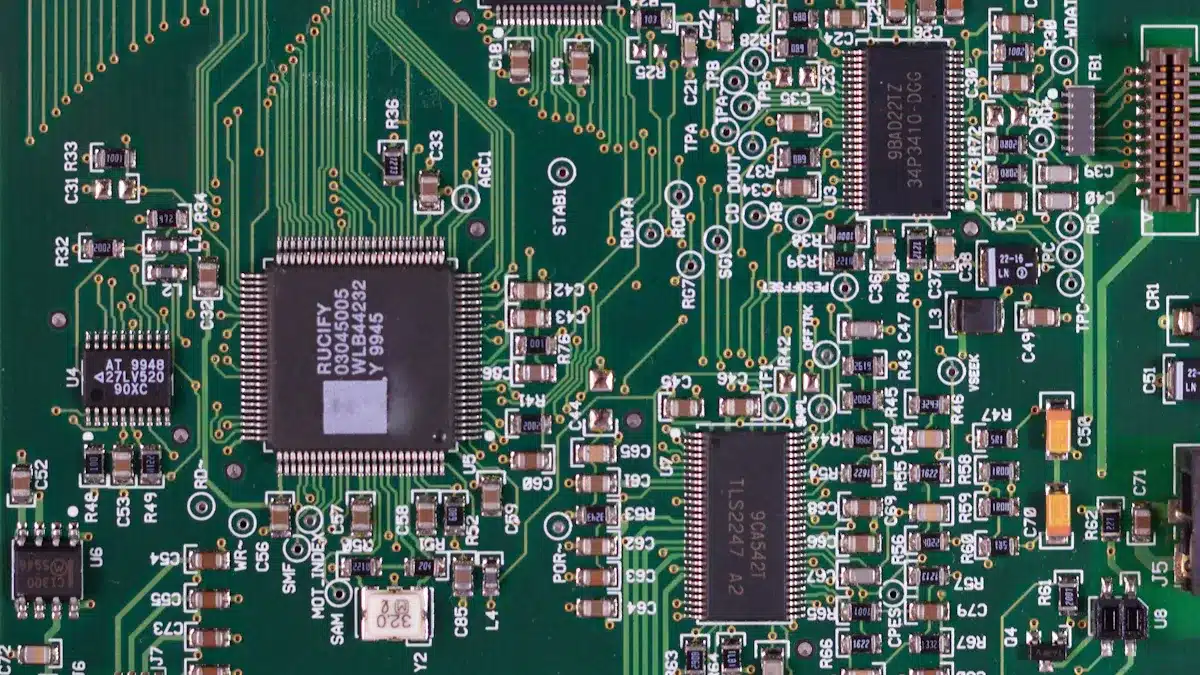

Resistors: Key Parts of a PCB

Resistor Function

Resistors are very important for controlling electrical current in a printed circuit board (PCB). They limit how much current flows. This helps keep the right voltage levels across different parts. By doing this, resistors protect delicate parts from damage caused by too much current. Here are some main jobs of resistors:

Control electrical current and voltage flow.
Protect sensitive components from damage.
Create proper operating conditions.

Common Uses of Resistors

You can find resistors in many kinds of electronic circuits. They are needed for many uses, such as:

General-purpose applications: Resistors help manage current and voltage in everyday devices.
Communication systems: They keep signals clear by conditioning signals and keeping circuits stable.
Audio systems: Resistors control volume levels and stop sound quality from getting worse.
Power distribution circuits: They handle electrical current to make sure everything works safely.

Resistors come in different types, and each type has its own job. Below is a table that shows the most common types of resistors used in PCB making and their usual resistance ranges:

Type of Resistor	Description	Typical Resistance Range
Fixed Resistors	Resistors with a set resistance value that does not change.	Varies widely, often from 1Ω to several MΩ
Variable Resistors	Resistors that let you change the resistance value while using them.	Varies widely, often from 1Ω to several MΩ
Linear Resistors	Resistors that change resistance steadily with voltage.	Varies widely, often from 1Ω to several MΩ
Non-Linear Resistors	Resistors that do not follow Ohm’s law, with changing current flow.	Varies widely, often from 1Ω to several MΩ
Surface Mount Resistors	Chip resistors that attach directly to the PCB without leads.	Varies widely, often from 1Ω to several MΩ

Knowing the common ways resistors can fail can help you spot problems in your circuit. Here’s a table that lists some common causes and their failure modes:

Cause	Failure Mode
Electrical stress	An increase in resistance or open circuit conditions
Mechanical stress	An immediate failure or an increase in resistance value
Electrostatic discharge	A quick drop in resistance, then an increase with repeated stress or open circuit conditions
Intrinsic defect (e.g., soldering heat)	A sudden change in resistance value
Thermal stress	A change in resistance
High humidity and temperature	An increase in resistance or open circuit conditions
Ionic or metal conduction	A decrease in resistance
Corrosion	An increase in resistance when used for a long time

By managing electrical current, resistors improve the overall reliability of electronic devices. They are key parts that make sure your circuit board works correctly.

Capacitors: Commonly Used Components

Capacitor Function

Capacitors are very important for storing and releasing electrical energy on a printed circuit board (PCB). They help keep the voltage steady and reduce voltage changes. This is key for making sure circuits work well. Here are some main jobs of capacitors:

They quickly charge and release energy.
Capacitors change alternating current (AC) into direct current (DC). This gives a voltage boost in circuits.
They smooth out voltage changes, so your circuit runs smoothly.

Common Uses of Capacitors

Capacitors are used in many electronic circuits, especially for filtering and timing. Below is a table that shows some common uses of capacitors:

Application Type	Description
Filtering Capacitors	They smooth out AC signals and remove noise. This improves sound quality in audio devices.
Timing Capacitors	They control timing in circuits. This ensures correct frequency operation, often in oscillators.

In consumer electronics, different types of capacitors have specific jobs. Here’s a table that shows typical capacitance values and how they affect circuit performance:

Capacitor Type	Typical Capacitance Values	Impedance Characteristics at Low Frequency	Impedance Characteristics at High Frequency
Electrolytic Capacitor	47 uF	Low impedance because of high capacitance	Higher ESL leads to more impedance
Ceramic Disc Capacitor	0.1 uF	Lower impedance due to smaller size	Lower ESL means lower impedance

Capacitors are also very important for filtering power supply. They need large capacitance values and low equivalent series resistance (ESR) for stable voltage. In high-frequency RF applications, capacitors should have low parasitic inductance and high self-resonant frequency (SRF). Precision timing circuits work better with capacitors that have stable temperature coefficients.

However, capacitors can fail, which affects how circuits work. Here’s a table that lists common failure types and how to find them:

Failure Mode	Detection Method
Damaged dielectrics causing leakage	Acoustic microscopy
Cracks or layers coming apart	B-Scan imaging
Increased leakage current	Thermal imaging, Electrical testing

Knowing how capacitors work and where they are used helps you see their importance in circuit boards. They make sure your electronic devices run well and reliably.

Inductors: Circuit Board Components

Inductor Function

Inductors are very important for storing energy on a printed circuit board (PCB). They keep energy in a magnetic field when current goes through them. This energy can be used later, which helps keep voltage steady in circuits. Here are some main jobs of inductors:

Inductors remove noise, which helps keep signals clear.
They keep voltage steady, making sure electronic circuits work right.
Inductors work with capacitors to create LC filters. These filters block unwanted high-frequency noise.

Common Uses of Inductors

You can find inductors in many places, especially in power supplies and filters. Here are some common uses:

Power Supply Circuits: Inductors control current and keep voltage steady. They help reduce power noise and smooth out output current.
Frequency Filters: Inductors are important in circuits that handle signal frequencies. For example, low-pass filters let low-frequency signals through while blocking higher ones. This is common in DC power and audio devices.
Voltage Regulation: Inductors keep ripple voltage levels acceptable in power supplies. They filter and manage energy in electronic circuits.

Inductors can break, causing problems in your circuit. Common failure types include open failures, short failures, and parametric losses. You can find these failures by looking closely or using advanced methods like X-ray CT and SEM analysis.

Knowing how inductors work in your circuit board helps you see why they are important for reliable electronic devices.

Diodes: Essential Circuit Board Components

Diode Function

Diodes are very important for controlling current in electronic circuits. They work like one-way gates for electricity. This means they let current flow in only one direction. This is important to stop damage to circuits and keep them working well. When current goes from the anode to the cathode, the diode lets it pass (forward bias). But it blocks current when it tries to go the other way (reverse bias). This special ability helps keep voltage levels steady on your circuit board.

Common Uses of Diodes

Diodes have many important jobs in electronic devices. Here are some common uses:

Rectification: Diodes change alternating current (AC) into direct current (DC). This is needed to power many electronic devices.
Voltage Regulation: Zener diodes control voltage by allowing reverse current flow at a certain voltage. They protect sensitive parts from voltage spikes and keep things running smoothly even when the power supply changes.
Signal Demodulation: Diodes help get information from modulated signals. This makes them very important in communication systems.

Diodes can also fail in different ways. Common failure types include:

Closed Circuit Failure: This happens when a diode fails as a short circuit because of too much voltage, causing thermal runaway.
Open Circuit Failure: This occurs when the diode gets too hot, leading to high resistance or an open circuit.
Degraded Device Failure: Over time, a diode may show more reverse leakage current, which makes it hard to diagnose.

You can find these failures using a multimeter to check for forward voltage. This helps you keep your circuit board components reliable.

Transistors: Key Parts of a PCB

Transistor Function

Transistors are very important in electronic circuits. They work as both switches and amplifiers. As switches, transistors control how current flows. For example, the 2N3053 transistor has two states: saturation and cut-off. In saturation, it lets current flow and can handle up to 700mA. This makes it great for switching. In cut-off, it stops current flow, showing how well it controls circuits.

As amplifiers, transistors make signals stronger. A small base current can control a larger collector-emitter current. This helps transistors boost audio signals in radios or improve signals in communication devices.

Common Uses of Transistors

Transistors are very important in today’s electronics. They replaced vacuum tubes, making devices smaller and more reliable. Their smaller size helped create integrated circuits. This change made components smaller and better. Here are some common uses of transistors:

Switching Applications: Transistors control power in devices like computers and smartphones.
Signal Amplification: They improve audio and radio signals, making sound better and communication clearer.
Digital Logic Circuits: Transistors are the basic parts of logic gates, which are key for computing.

Transistors have changed the world of electronics. Their ability to work as both switches and amplifiers makes them essential in circuit boards. Knowing how transistors work helps you see their importance in your electronic devices.

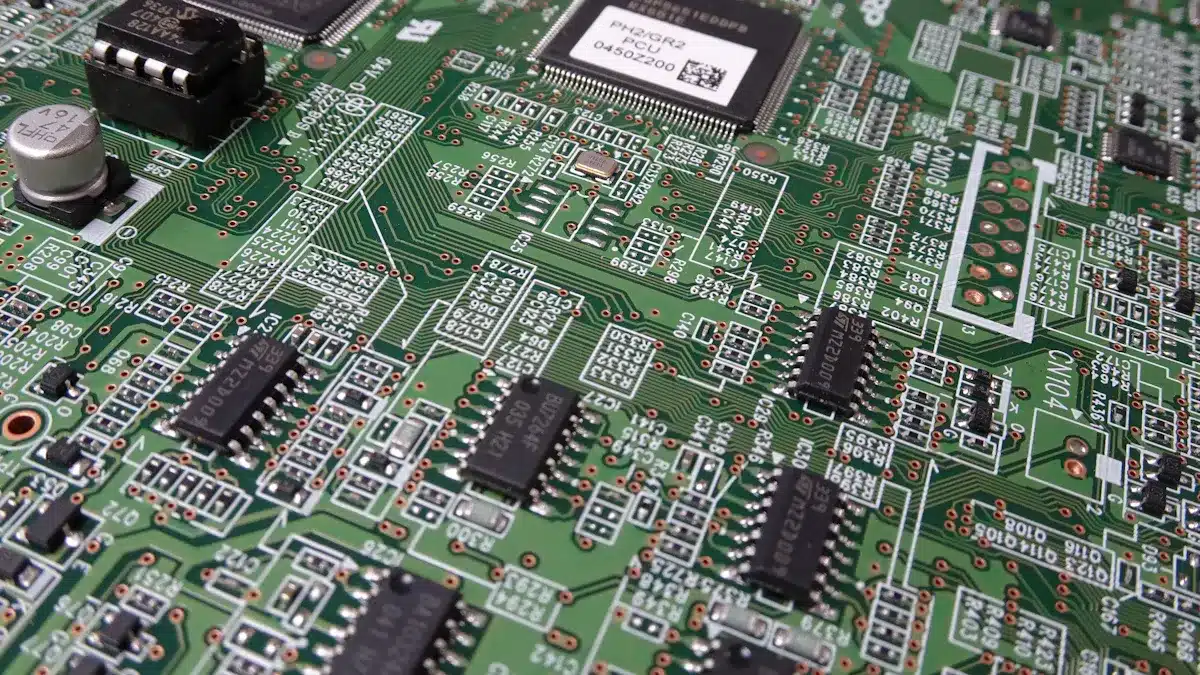

Integrated Circuits: Compact PCB Components

IC Function

Integrated circuits (ICs) are tiny electronic circuits made from semiconductor material. They have transistors, resistors, and other parts inside. ICs do special jobs like processing signals and doing calculations. You can think of them as the brains of your circuit board. They make printed circuit boards (PCBs) work better by providing a small solution for complex tasks.

Here’s a quick comparison of ICs and PCBs:

Integrated Circuit (IC)	Printed Circuit Board (PCB)
Tiny electronic circuit made from semiconductor material	Physical and electrical support for building circuits
Has transistors, resistors, and other parts	Connects ICs and other components
Does specific jobs like processing signals and calculations	Helps combine ICs to improve device performance

Common Uses of ICs

You can find integrated circuits in many electronic devices. They are very important in today’s technology. Here are some benefits of using ICs in PCB design:

ICs are stronger and more reliable, using less power and being easier to make.
They are cheaper, making them good for mass production.
Their small size allows for many uses in different products.
ICs provide better performance and faster operation because of smart design.
They use less power, which makes them more energy-efficient.

Using integrated circuits in your circuit board design can greatly boost performance and reliability. They lower the number of parts needed, which makes the design and assembly easier. This helps your electronic devices work better and more efficiently.

Connectors: Essential Parts of a PCB

Connector Function

Connectors are very important for making electrical connections on a printed circuit board (PCB). They connect circuits, modules, and parts. This helps with communication and power flow. Here are some main jobs of connectors:

Connectors let currents and signals pass through.
They help send data and distribute power.
Connectors make it easier to upgrade and fix things.

You depend on connectors for quick repairs and future upgrades. Without them, your circuit board would not be flexible or efficient.

Common Uses of Connectors

You can find many types of connectors in PCB assemblies. Each type has its own job. Here are some common connectors and what they do:

Power Connectors: Used in laptops and small devices (e.g., Barrel connectors).
Data Connectors: Important for sharing information (e.g., USB, Ethernet).
RF Connectors: Used in wireless systems and antennas (e.g., SMA, BNC).
Fiber Optic Connectors: For fast data transfer (e.g., LC, SC).
Circular Connectors: Made for high-current use in tough places (e.g., aviation plugs).
Audio/Video Connectors: For sending sound and pictures (e.g., HDMI, RCA).
Edge/Card Connectors: Allow for easy connections (e.g., PCI, M.2).
Automotive Connectors: Built to handle tough car environments.

These connectors make sure your circuit board parts work well together. Knowing what they do helps you see how complex and reliable modern electronic devices are.

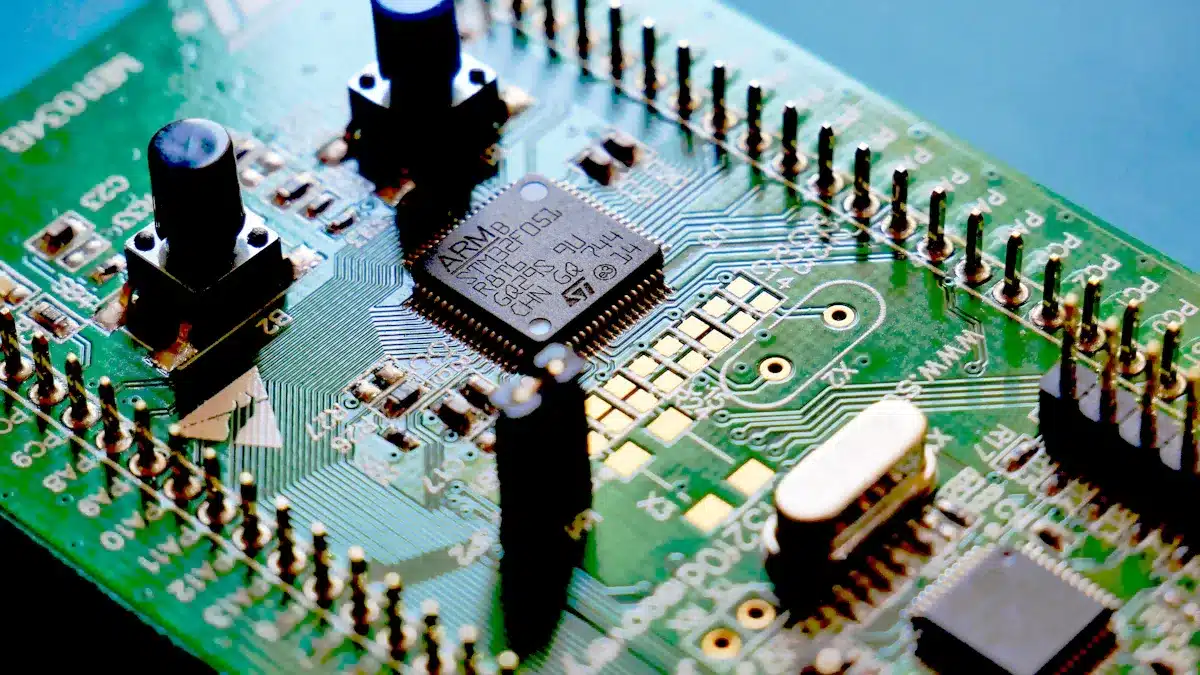

Switches: Commonly Used Components

Switch Function

Switches are very important for controlling electricity in circuits on a printed circuit board (PCB). You can think of a switch as a tool that connects or disconnects electrical paths. When you press a switch, it completes the circuit. This lets the current flow. When you let go of the switch, it breaks the circuit and stops the electricity. Here are some key points about how switches work:

A PCB switch is attached directly to the circuit board.
Pressing the switch turns on a function by completing the connection.
Releasing the switch stops the current flow.

Common Uses of Switches

Switches are used in many places, like user interfaces and control systems. They help you interact with devices easily. Below is a table that shows common types of switches and where they are used:

Type of Switch	Common Applications
Toggle Switches	General on/off controls
Rocker Switches	Power controls in appliances
Slide Switches	Volume adjustments in audio devices

You use switches every day, like turning on a light or changing the volume on your music player. Their simple design and effectiveness make them important parts of circuit boards in many electronic devices.

Crystal Oscillators: Timing Circuit Board Components

Crystal Oscillator Function

Crystal oscillators are very important for making exact frequencies in electronic circuits. They create a steady frequency that is needed for timing devices. Here are some main points about how they work:

Crystal oscillators use resonance to make precise frequencies, like how a pendulum swings.
They create a steady waveform, which is important for many electronic uses.
Quartz crystals in oscillators help keep things stable and accurate because of their piezoelectric properties. This helps them keep the same frequency even when conditions change.

These oscillators reduce the effects of temperature and voltage changes. This helps them work well in different environments. You can find crystal oscillators in many circuit board parts, where they help keep accurate timing.

Common Uses of Crystal Oscillators

Crystal oscillators are key for timing tasks in devices like microcontrollers and clocks. They act as reference oscillators, giving steady frequency signals that help digital circuits work together. Here are some common uses:

“Crystal oscillators are the most common type of external oscillators when a precise clock signal is needed. A quartz crystal and extra circuits provide great stability and accuracy.”

You will see crystal oscillators in:

Microcontrollers: They make sure timing is right for processing tasks.
Clocks: They keep time accurately.
Communication Systems: They help synchronize data transfer.

Their benefits include accuracy, small size, low cost, low power use, and high-frequency output. Crystal oscillators offer the best accuracy and frequency stability compared to other types. This makes them very important for reliable electronic devices.

PCB Traces: Connecting Circuit Board Components

PCB traces are important paths for electrical signals between parts on a circuit board. You can think of them as roads in a city, guiding electric signals to different areas of the PCB. These traces are made of conductive tracks, usually copper, that are etched onto a non-conductive base. They connect parts like resistors, capacitors, and integrated circuits, making sure the circuit works properly.

Trace Function

The main job of PCB traces is to help electrical connections. They let current flow easily between different parts of the circuit board. Without these traces, your electronic devices would not work well. For example, in an amplifier circuit, traces connect the power supply, link the input signal to the transistors, and finally connect to the output to ensure the signal is amplified correctly.

Common Uses of Traces

PCB traces are very important for keeping signal quality. The width and layout of these traces greatly affect how well the circuit works. Here’s a quick look at how different features of traces impact performance:

Aspect	Impact on Performance
Trace Width	Wider traces lower resistance and improve how much current they can carry, making them more efficient. However, they take up more space.
Impedance Control	Keeping impedance steady stops signal reflections, which helps keep signal quality in high-frequency uses.
Crosstalk and EMI	A good layout cuts down on noise and interference, making sure signals are clearer and more reliable.

By knowing how important PCB traces are, you can see how they help make your electronic devices reliable and efficient.

In conclusion, every part is important for how a printed circuit board works. Here’s a simple look at what they do:

Component	Function
Resistors	Control how much current flows and manage electricity in circuits.
Capacitors	Store electrical energy and help keep voltage steady.
Diodes	Let current flow one way, protecting parts and managing voltage.
Transistors	Control and boost electrical signals, which are key for integrated circuits.
Crystals and Oscillators	Make steady clock signals for timing in different electronic tasks.
Light-Emitting Diodes (LEDs)	Change electrical energy into light, used in screens and indicators.
Integrated Circuits (ICs)	Combine many parts on one chip for complex tasks.
Electromechanical Components	Connect electrical and physical parts, allowing control of current flow.
Connectors	Make sure connections between parts and outside devices are secure.
Transformers	Change voltage levels while keeping power balanced in electrical systems.

Knowing these parts helps you design reliable circuits and fix problems better. See how they work together to make efficient electronic devices.

FAQ

What is a PCB?

A PCB, or Printed Circuit Board, connects electronic parts and helps them work in devices.

How do I choose the right components for my PCB?

Pick components based on your circuit’s voltage, current, and what you need them to do. Always check if they work together.

Can I repair a damaged PCB?

Yes, you can fix a damaged PCB by changing broken parts or re-soldering connections. Make sure you have the right tools and know-how.
