A common question is, what is a circuit card assembly? Simply put, a circuit card assembly transforms a plain circuit board into a fully functional device by adding essential components. These parts enable the circuit card to operate effectively within electronic systems. Understanding what a circuit card assembly is highlights its crucial role in modern electronics. It serves as the foundation for devices that perform reliably and have long lifespans.
Many recent advancements in circuit card assembly improve the process:
Automation and robotics speed up assembly and reduce errors.
AI-driven quality inspections quickly detect defects.
Enhanced tools create stronger connections and minimize issues.
Smaller circuit cards enable the development of compact, intelligent devices.
Time Period | CAGR (%) | Market Size (2023) | Notes |
|---|---|---|---|
2023-2032 | Over USD 90 Billion | GM Insights forecast | |
Rigid PCB segment | >6 | N/A | Segment-specific growth forecast |
Asia Pacific region | N/A | 25% market share (2023) | Expected lucrative growth |
Growth Drivers | N/A | N/A | IoT, edge computing, advanced materials, increasing PCB complexity |
Learning what a circuit card assembly is helps explain why it remains vital today. The circuit card assembly is a key component in manufacturing electronics, ensuring every electronic product functions properly. As technology advances, the importance of circuit card assemblies continues to grow.
Key Takeaways
A circuit card assembly changes a plain circuit board into a working device by putting on important parts like resistors and chips. Good design and careful checking in circuit card assembly help devices work well and last a long time. There are two main ways to put parts on: surface mount makes devices smaller, and through-hole gives stronger connections. Testing and looking for mistakes find problems early, so makers can give safe and good electronics. New things like automation, AI, and bendy materials make circuit card assembly quicker, smarter, and better.

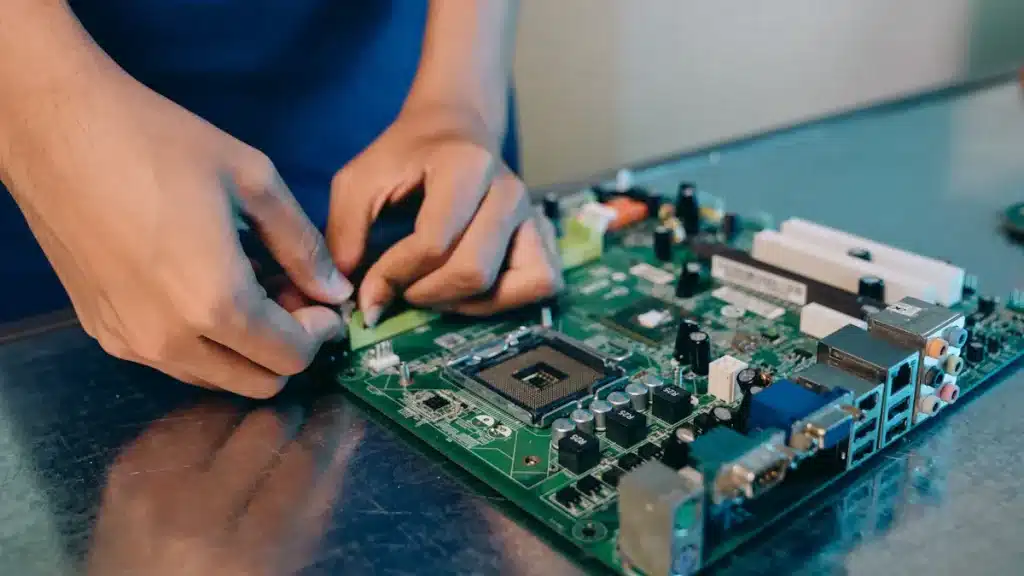

What Is a Circuit Card Assembly
CCA vs. PCB
A lot of people wonder what a circuit card assembly is. To understand, you need to know how pcb and cca are different. A circuit board, or printed circuit board, is a flat board made from fiberglass. It has copper lines that connect different spots on the board. This board is the base for circuits but has no parts on it.
A circuit card assembly uses the bare circuit board and adds electronic parts. These parts can be resistors, capacitors, integrated circuits, and connectors. Adding these parts changes the board into a working device. The difference between circuit card assembly and pcb assembly is important to know. A PCB only gives shape and paths for electricity. A circuit card assembly makes the device work by adding the needed parts.
Aspect | PCB (Printed Circuit Board) | CCA (Circuit Card Assembly) |
|---|---|---|
Definition | Bare board with conductive pathways only | PCB populated with electronic components |
Components | No electronic components | Includes resistors, capacitors, ICs, and other components |
Functionality | Provides mechanical support and electrical pathways | Fully functional electronic circuit ready for device use |
Manufacturing Steps | Design, etching, and printing conductive paths | PCB fabrication plus component placement and soldering |
Usage Stage | Intermediate manufacturing stage | Final assembly stage, ready for integration |
Complexity | Less complex, fewer manufacturing steps | More complex, involves assembly, soldering, and testing |
The table above shows how pcb and cca are not the same. Circuit card assembly is harder and needs more steps like soldering and testing. This matters because only the circuit card can power and control devices.
Note: A circuit card assembly turns a simple circuit board into a full electronic system. Without this step, the board cannot do any electronic job.
Role of CCA in Electronics
The role of cca in electronics is very important. The circuit card is the backbone of every electronic device. It connects all the parts so they work together. If someone asks what a circuit card assembly is, the answer is simple: it is the part that makes the device work.
The circuit card assembly lets devices run by giving them structure and connections for signals and power. In a smartphone, the circuit card links the processor, memory, and sensors. In a car, it connects the control systems and sensors. The role of cca is to make sure each part talks and works as planned.
Experts say circuit card assemblies are like the nervous system of electronics. They help make smaller, better, and more reliable products. As circuit cards have changed, devices have become smaller, smarter, and stronger. New materials and machines have made building circuit cards faster and better. Companies now use special tools to check each circuit card for problems, making sure every device works right.
Circuit card assemblies help new tech like AI, IoT, and 5G.
They let devices get smaller and use less energy.
The role of cca also includes fast data transfer and steady operation.
A circuit card assembly is more than just a group of parts. It is the main reason modern electronics work. The circuit card brings together everything a device needs to run, from toys to computers. Knowing what a circuit card assembly is helps us see why it matters so much today.
Components of Circuit Card Assembly
Common Electronic Components
Every circuit card needs many electronic parts to work. These circuit card assembly components help control signals and manage power. They also help process information. Some common circuit board components are resistors, capacitors, diodes, inductors, transistors, integrated circuits, sensors, connectors, transformers, batteries, and switches. Each part has its own job in the circuit card.
Component | Category | Description |
|---|---|---|
Resistor | Passive | Regulates current; used in power circuits, signal processing, amplifiers. |
Capacitor | Passive | Stores electric charge; used for filtering, coupling, tuning. |
Diode | Active | Allows current in one direction; used for rectification, protection, switching. |
Inductor | Passive | Stores energy in magnetic field; controls current changes. |
Transistor | Active | Switches and amplifies signals; controls current flow. |
Integrated Circuits | Integrated Circuit | Miniaturized circuits performing complex operations like data processing and memory storage. |
Picking good circuit card assembly components from trusted companies helps stop failures. It also makes electronic devices last longer. Making sure parts fit with the printed circuit board and other pieces helps everything work well. This also lowers mistakes that cost money. Having these parts ready makes fixing and upgrading easier.
PCB as the Foundation
The printed circuit board is the base for every circuit card. This base holds all the parts and connects them with copper lines. Most printed circuit boards use fiberglass, like FR-4, for strength and insulation. Some circuit cards use flexible materials like polyimide for special jobs. Copper layers make paths for electrical signals. A solder mask keeps the board safe from rust and short circuits. A silkscreen layer adds marks to help with building and testing.
How the printed circuit board is designed affects the whole assembly. Good circuit card design puts parts in smart groups. It keeps space even and uses clear marks. This makes soldering easier and lowers mistakes. It also helps machines build the circuit card faster. Planning the layout well helps signals stay strong and keeps heat and power under control. These things help the finished circuit card work well in any device.
Tip: Using the right materials and smart circuit card design makes the circuit card stronger. It helps the circuit card handle stress and changes in temperature. It also helps meet tough industry rules.
Circuit Card Assembly Manufacturing Process
Assembly Steps
The circuit card assembly manufacturing process turns a plain board into a working device. Each step builds on the one before it. This makes sure the final product is good quality. The main steps in making a circuit card assembly are:
Solder paste printing puts solder paste on the board with a stencil.
Solder paste inspection checks if the paste is the right shape and thickness.
Machines place surface-mount devices onto the board.
Reflow soldering melts the paste and sticks parts to the board.
Automatic optical inspection looks for problems and tells if repairs are needed.
Through-hole components go into drilled holes by hand or machine.
Preheating and wave soldering use liquid tin waves to attach these parts.
Trimming and visual inspection cut off extra pins and check for mistakes.
Final testing uses probes to make sure important connections work.
Quick turn circuit card assembly can finish in just one day if all parts are ready. Most projects take one to five days. This depends on how hard the job is and if all parts are there.
Tip: Good planning and using machines help make the circuit card assembly process faster and lower mistakes.
Surface Mount and Through-Hole
Surface mount technology and through-hole technology are two main ways to build circuit card assemblies. Surface mount technology puts parts right on top of the board. This lets the parts be smaller and closer together. Machines do most of the work, so it is fast and saves money. Through-hole technology puts part leads into holes and solders them on the other side. This makes strong bonds and is good for things that need to last a long time or use lots of power.
Aspect | Through-Hole Technology (THT) | Surface Mount Technology (SMT) |
|---|---|---|
Component Mounting | Inserted into holes | Mounted on surface |
Component Size | Larger | Smaller |
Assembly Process | Manual or machine | Automated |
Repairability | Easier | Needs special tools |
Reliability | Stronger bonds | Less robust |
Space and Weight | More space, heavier | Compact, lightweight |
Surface mount technology helps make small, light devices and speeds up building. Through-hole technology is stronger and easier to fix. The best choice depends on what the device needs and which steps are used.
Testing and Inspection
Testing and inspection are very important in making circuit card assemblies. These steps find problems early and make sure the device works well. Some common ways to test are visual inspection, in-circuit testing, flying probe testing, automated optical inspection, and x-ray inspection. Functional testing checks if the board works like it should. Burn-in testing pushes the board hard to see if it fails.
Testing Method | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|
Visual Inspection | Quick, cost-effective | May miss hidden faults | Initial screening |
In-Circuit Testing (ICT) | High fault coverage | Needs custom fixtures | Mass production |
Flying Probe Testing | Flexible, no fixture needed | Slower, limited detection | Prototyping, small batches |
AOI | Accurate, consistent | Surface defects only | High-volume production |
AXI | Finds hidden solder issues | Expensive, time-consuming | Complex boards |
Burn-In Testing | Finds hidden defects | Time-consuming | Reliability testing |
Better inspection steps, like FMEA and zoom machines, help lower failures and make more good boards. Finding problems early stops bad circuit card assemblies from getting to customers. It also saves money by cutting down on repairs.
Note: Testing and inspection often help keep every circuit card assembly high quality and reliable.
Types and Applications in Electronics
Main Types of CCA
There are a few main types of circuit card assemblies. Each type is made for a special job in electronics. Engineers pick the type based on what the device needs. They also think about where the device will be used.
Rigid PCB Assembly has a hard base that does not bend. This type is strong and lasts a long time. It is used in things like TVs, machines, and cars.
Flex PCB Assembly has a bendable base. You can twist or fold these circuit cards. They are found in phones, smartwatches, medical tools, and airplanes.
Rigid-Flex PCB Assembly mixes hard and bendy layers. This saves space and makes the card work better. It is good for military gear, smart gadgets, and IoT devices.
Tip: Picking the right circuit card type helps devices work well and last longer.
Applications in Electronics
Circuit card assemblies are used in many kinds of electronics. Each type fits different jobs and places. The table below shows which assembly type works best for each use.
Assembly Type | Description | Typical Applications |
|---|---|---|
Surface Mount Technology (SMT) | Parts go right on top of the board. This lets devices be smaller and made faster. | Phones, computers, home gadgets, factory machines |
Through-Hole Technology (THT) | Parts go into holes in the board. This makes strong connections. | Big transformers, capacitors, connectors, diodes, transistors |
Rigid-Flex PCB Assembly | Has both hard and bendy layers. It can fit in tight spaces. | Wearables, laptops, phones, cars, test tools |
Mixed Assembly | Uses both SMT and THT for extra strength. | LED lights, sensor boards, server boards, video tools |
Ball Grid Array (BGA) Assembly | Solder balls hold microprocessors. This gives more connections and makes it stronger. | Phones, computers |
Circuit card assemblies are found in many things people use every day. They are in phones, tablets, computers, TVs, game consoles, and home gadgets. These cards also power smartwatches, cameras, and recorders.
Factories and hospitals need circuit card assemblies for special jobs. Medical tools need safe and smart circuit cards to meet tough rules. These cards help make implants, scan tools, and monitors. Using robots and clean rooms makes the cards better and faster. Factories use strong circuit cards to keep up with new tech and what people want.
Note: Circuit card assemblies help new electronics work better and do more things.
Quality and Advancements
Quality Control
Quality control is very important in circuit card assembly. Companies use many steps to make sure each board works well. They want the boards to last a long time. First, they check all materials and parts before making the boards. This helps stop problems early. During assembly, workers look for mistakes before they get worse. At the end, they check every circuit card to see if it meets tough rules.
Manufacturers follow rules like IPC-A-610 and IPC-2221. These rules help with designing and testing circuit card assemblies. Workers get regular training to learn new quality skills. Good records help with checks and make things better. Working with rule groups helps create better ways to test.
Quality control uses different tools and tests:
Solder Paste Inspection checks if the paste is put on right.
Automated Optical Inspection uses cameras to find missing parts.
X-ray Inspection looks inside the board for hidden problems.
Functional Circuit Testing acts like real use to check if it works.
In-Circuit Testing checks each part for mistakes.
Tip: Strong quality control means less waste and more trust. It also makes customers happier.
Technological Innovations
New technology has changed how circuit card assemblies are made. Robots and machines now do many jobs, like putting parts on and soldering. These machines work fast and very carefully. They can work all day and night. This means more boards get made and there are fewer mistakes. Pick and place machines use robot arms to move thousands of parts every hour. Automated Optical Inspection systems find problems quickly.
Computer-aided design and computer-aided manufacturing help engineers plan and build circuit cards. CAD software lets them make detailed board designs. CAM systems help machines follow the plan during building. This makes sure every step matches the design.
The table below shows some important new ideas:
Technological Innovation | Impact on Circuit Card Assembly |
|---|---|
Advanced Materials and Substrates | Flexible and rigid-flex PCBs help new uses and make boards stronger |
Surface Mount Technology (SMT) | Lets devices be smaller and more powerful |
Automation and Robotics | Makes work faster, more exact, and more steady |
Makes special shapes and detailed designs | |
Flexible Electronics | Helps make small and tough products |
Finds problems and helps make work better | |
Environmental Sustainability | Uses safe solder and materials that can be recycled |
Now, companies use AI and IIoT to find problems and make work better. These tools help circuit card assemblies last longer. In the future, more smart machines and green ways will be used. Engineers will use CAD and CAM to design boards for new needs.
Note: New technology makes circuit card assembly quicker, safer, and more dependable.
Circuit card assemblies are very important in electronics. They turn printed circuit boards into devices that work well and last long. These assemblies help keep parts safe from things like dust and water. They also help new ideas become real products. Circuit card assemblies make sure devices stay strong for a long time.
Here are some main reasons why they matter:
Circuit card assembly lets complicated devices work safely and well.
Good quality checks and new ways of building keep standards high.
Learning about circuit card assemblies helps people see how technology is part of everyday life.
FAQ
What is the main job of a circuit card assembly?
A circuit card assembly links and powers electronic parts. It lets devices work by joining things like chips, resistors, and sensors on one board.
How does surface mount technology differ from through-hole technology?
Surface mount technology puts parts right on the board’s surface. Through-hole technology puts part leads into holes in the board. Surface mount makes devices smaller and lighter. Through-hole gives stronger and longer-lasting connections.
Why do manufacturers test circuit card assemblies?
Testing helps find problems and checks if the board works right. Manufacturers test to make sure every circuit card assembly is safe and high quality.
Can circuit card assemblies be repaired?
Technicians can repair circuit card assemblies. They swap out broken parts or solder new ones onto the board. Fixing them helps devices work longer.
Where are circuit card assemblies used?
Circuit card assemblies are found in many devices. People use them in phones, computers, cars, medical equipment, and home gadgets.
